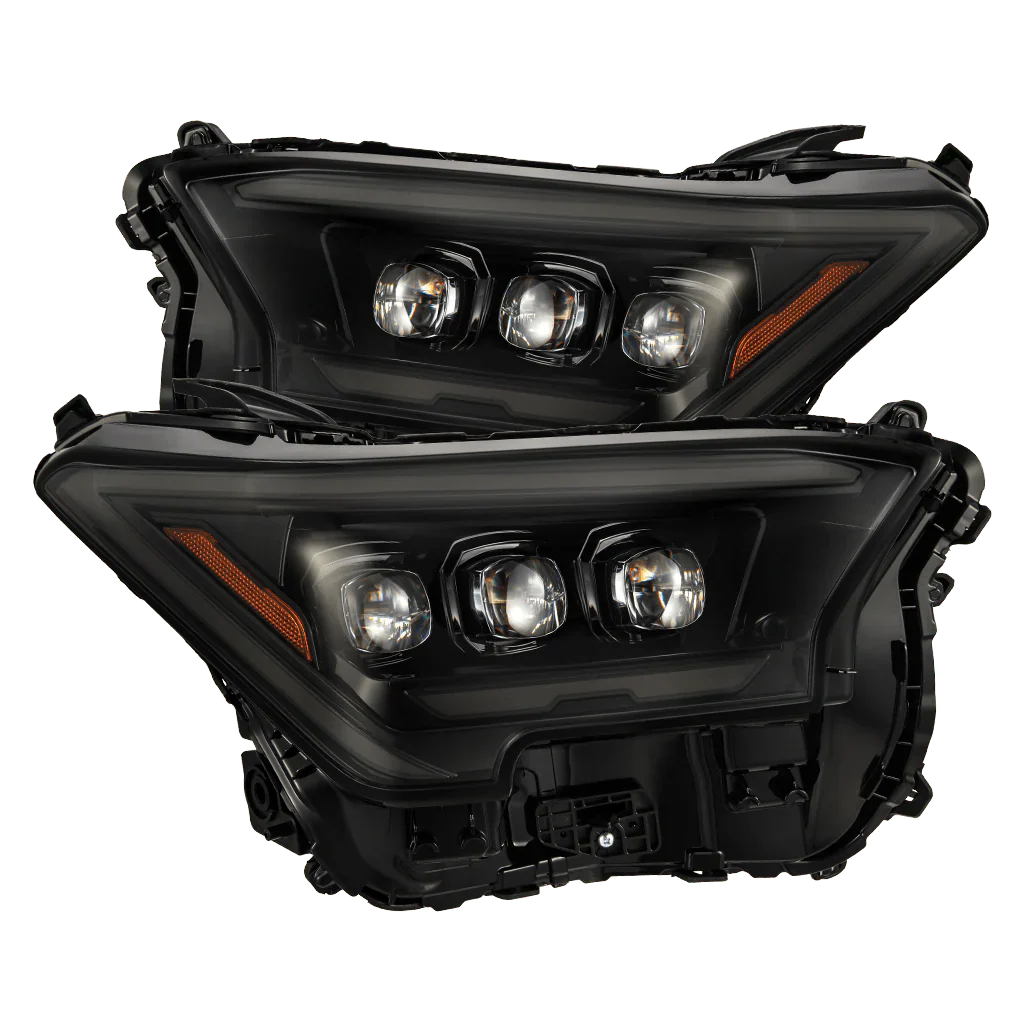

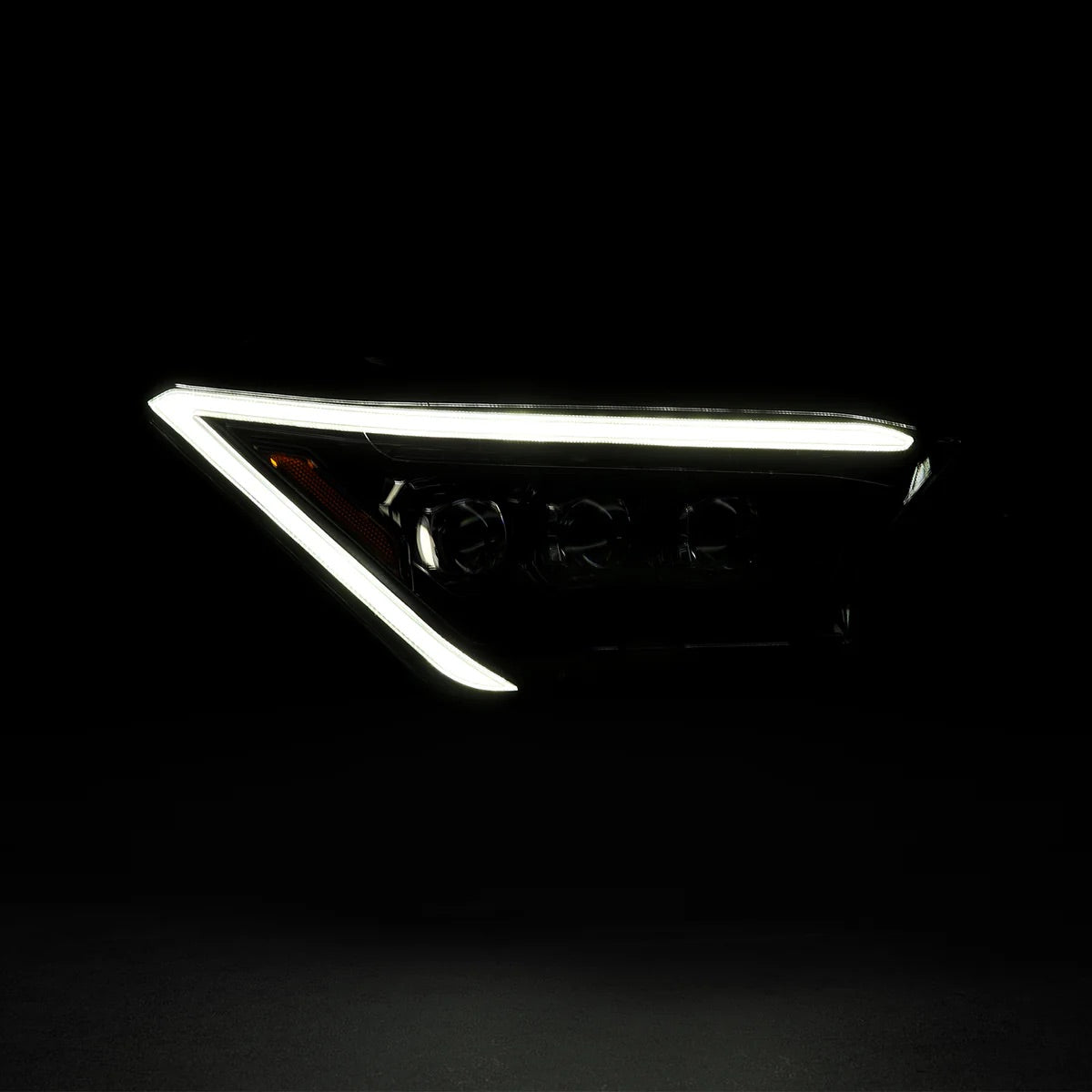

AlphaRex NOVA Headlights for the 2024-2026 Tacoma & 2025-2026 4Runner
The AlphaRex NOVA-Series 880326 is a pair of replacement LED projector headlights for the 2024-2026 Toyota Tacoma (4th Gen) and 2025-2026 Toyota 4Runner (6th Gen), in AlphaRex's Alpha-Black (gloss black) housing. Each headlight uses three Ice Cube 3D projectors: all three work as low beams, and the inner projector also provides the high beam. An LED tube around the edge of the housing works as the daytime running light (selectable white or amber) and sequential turn signal, and, with AlphaRex's DRL harness installed, plays an activation light sequence when you lock or unlock the vehicle. AlphaRex states these headlights meet SAE and DOT FMVSS108 requirements.
▸ Specs at a Glance
| SKU / MPN | 880326 / AHL-TT24-N-FLB |
|---|---|
| Fits | 2024-2026 Toyota Tacoma; 2025-2026 Toyota 4Runner |
| Projectors | 3 Ice Cube 3D projectors per headlight (all low beam; inner projector also high beam) |
| LEDs | Osram Oslon Black Flat LEDs (low and high beam) and AlphaRex LUXX LEDs (low beam) |
| DRL / turn signal | LED tube: selectable white or amber DRL, sequential turn signal, activation light |

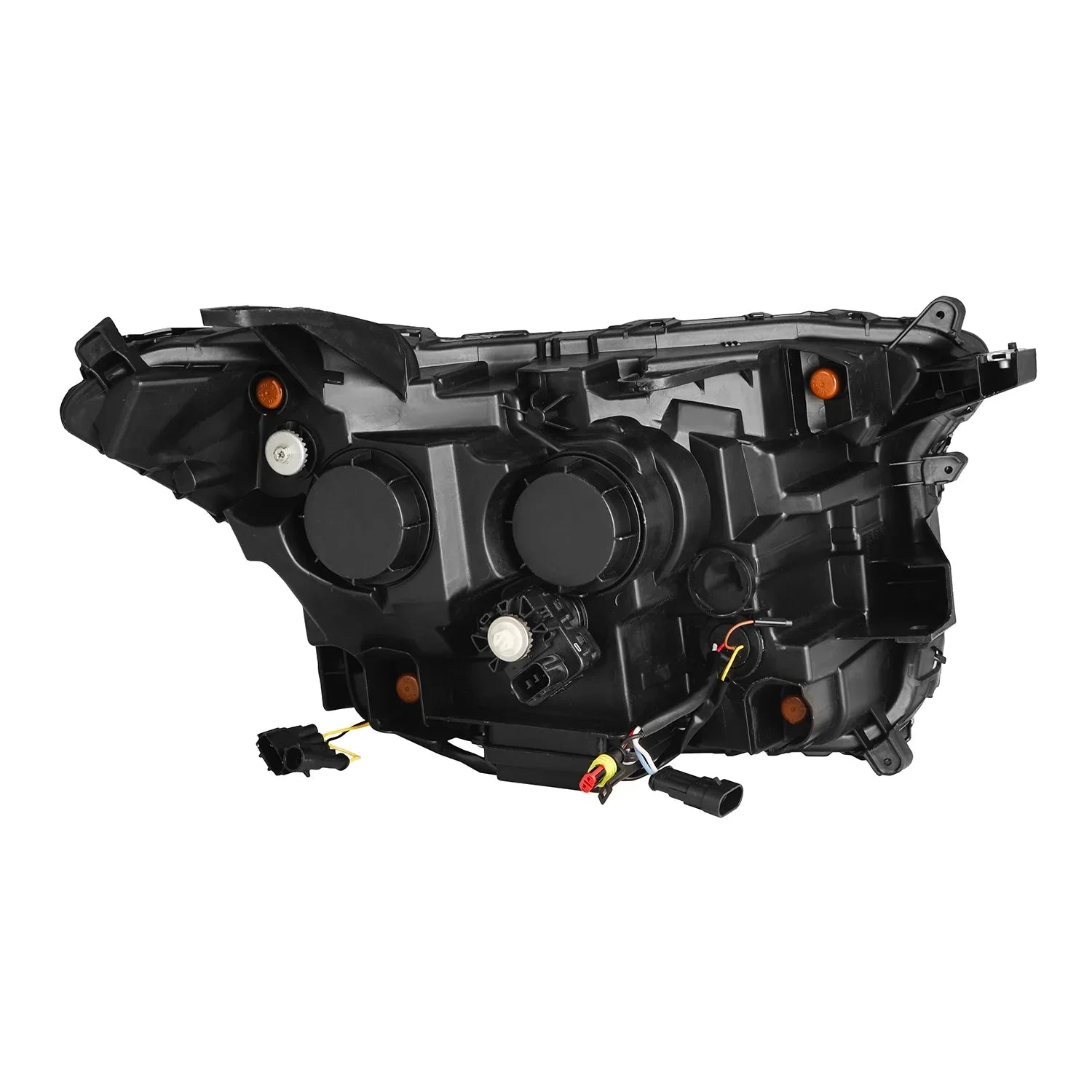

| Housing | Polypropylene (PP), Alpha-Black: glossy black finish with black accents for a chrome-delete look |
| Lens | Clear polycarbonate with anti-fog and anti-yellowing/oxidation coatings |
| Vents | Nitto Denko TEMISH CAPSEAL breathing vents to release moisture |
| Compliance | SAE and DOT FMVSS108 (per AlphaRex) |
| Warranty | 2-year AlphaRex manufacturer warranty on defects in design and manufacturing |
| Listed weight / size | 21 lb; 23 x 25 x 14 in |
▸ Compare AlphaRex Headlights for the 4th Gen Tacoma & 6th Gen 4Runner
| Headlight | Projectors | LED tube style | Housing |
|---|---|---|---|
| NOVA-Series Alpha-Black (this page, 880326) | 3 Ice Cube 3D projectors | Around the edges, inspired by the 3rd Gen Tundra | Alpha-Black: glossy black finish with black accents |
| NOVA-Series Black (880327) | 3 Ice Cube 3D projectors | Around the edges, inspired by the 3rd Gen Tundra | Black: matte black finish with chrome accents |
| OG-Style NOVA-Series Alpha-Black (880332) | 3 Ice Cube 3D projectors | Along the top edges, inspired by AlphaRex's 5th Gen 4Runner NOVA design | Alpha-Black: glossy black finish with black accents |
| OG-Style NOVA-Series Black (880333) | 3 Ice Cube 3D projectors | Along the top edges, inspired by AlphaRex's 5th Gen 4Runner NOVA design | Black: matte black finish with chrome accents |
| LUXX-Series Alpha-Black (880328) | Dual projectors with AlphaRex LUXX LEDs (AlphaRex's second-tier series) | Around the edges, inspired by the 3rd Gen Tundra | Alpha-Black: glossy black finish with black accents |
| LUXX-Series Black (880329) | Dual projectors with AlphaRex LUXX LEDs (AlphaRex's second-tier series) | Around the edges, inspired by the 3rd Gen Tundra | Black: matte black finish with chrome accents |
| OG-Style LUXX-Series Alpha-Black (880334) | Dual projectors with AlphaRex LUXX LEDs (AlphaRex's second-tier series) | Along the top edges, inspired by AlphaRex's 5th Gen 4Runner NOVA design | Alpha-Black: glossy black finish with black accents |
| OG-Style LUXX-Series Black (880335) | Dual projectors with AlphaRex LUXX LEDs (AlphaRex's second-tier series) | Along the top edges, inspired by AlphaRex's 5th Gen 4Runner NOVA design | Black: matte black finish with chrome accents |
All eight have an LED tube with selectable white or amber DRL, a sequential turn signal and an activation light. Want to see every option? Browse all 2024+ Toyota Tacoma headlights.
▸ Installation: What to Expect
These replace your factory headlights, but plan on taking the front bumper off. AlphaRex's installation guide for the 2024-2025 Tacoma has you:
- Remove the intake snorkel and cooling plate (12 push clips in total).
- Remove the front bumper: three 10mm bolts on top, unplug the three connectors behind the bumper (two on the passenger side, one on the driver side), four 10mm bolts on the lower bumper (a socket extension helps) and eight 10mm bolts underneath (two hidden behind the liner). Removing the fender flares is optional but makes access easier.
- Remove each factory headlight (four 10mm bolts) and unplug its three connectors.
- Install the AlphaRex headlights (four 10mm bolts each).
- Optional: install the DRL harness (see below). To switch the DRL to amber, AlphaRex's guide has you open the control-board cover and connect the two white wires.

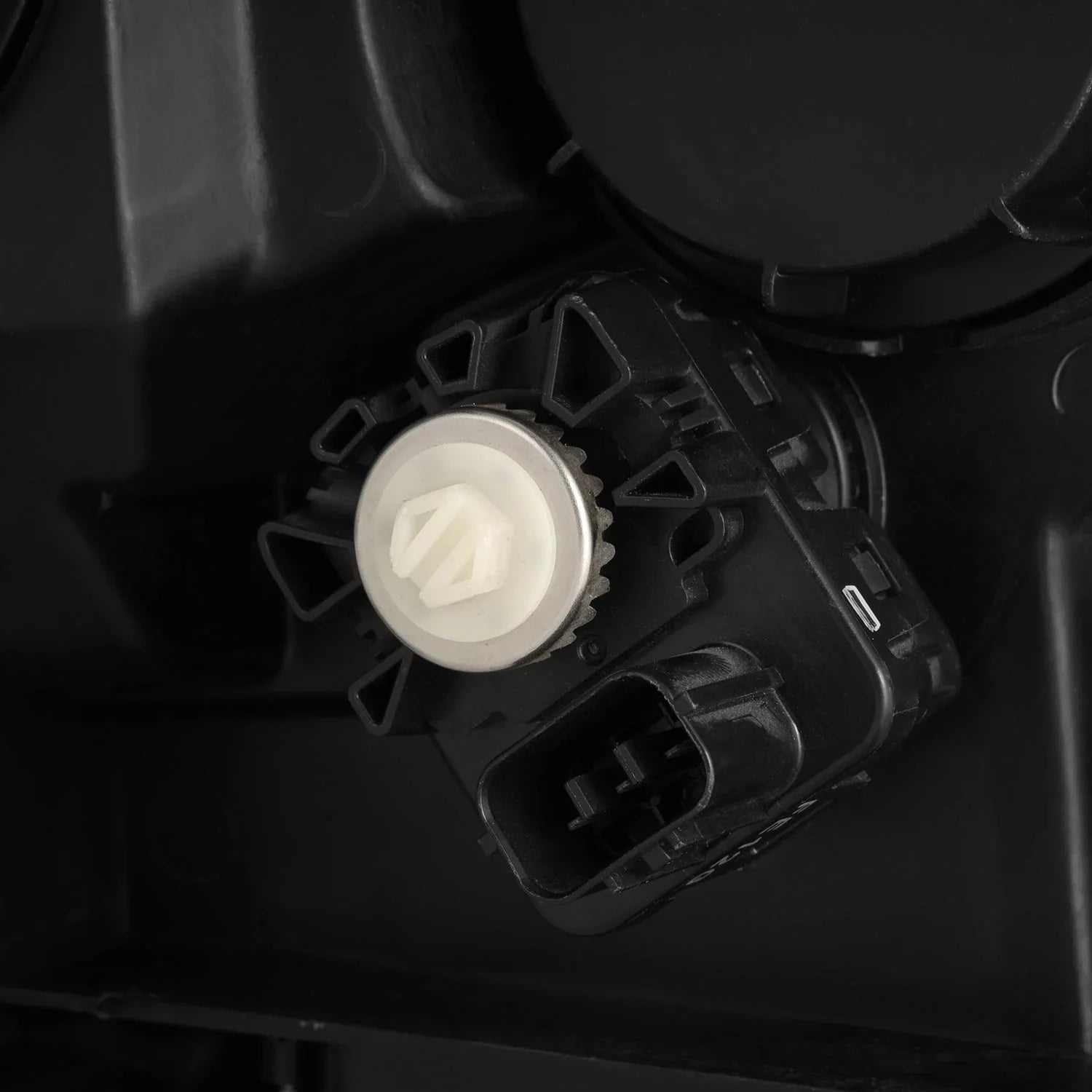

- Aim the beams with a T2 Phillips screwdriver: the lower adjustment screw moves the beam up or down, and the top screw moves it left or right.

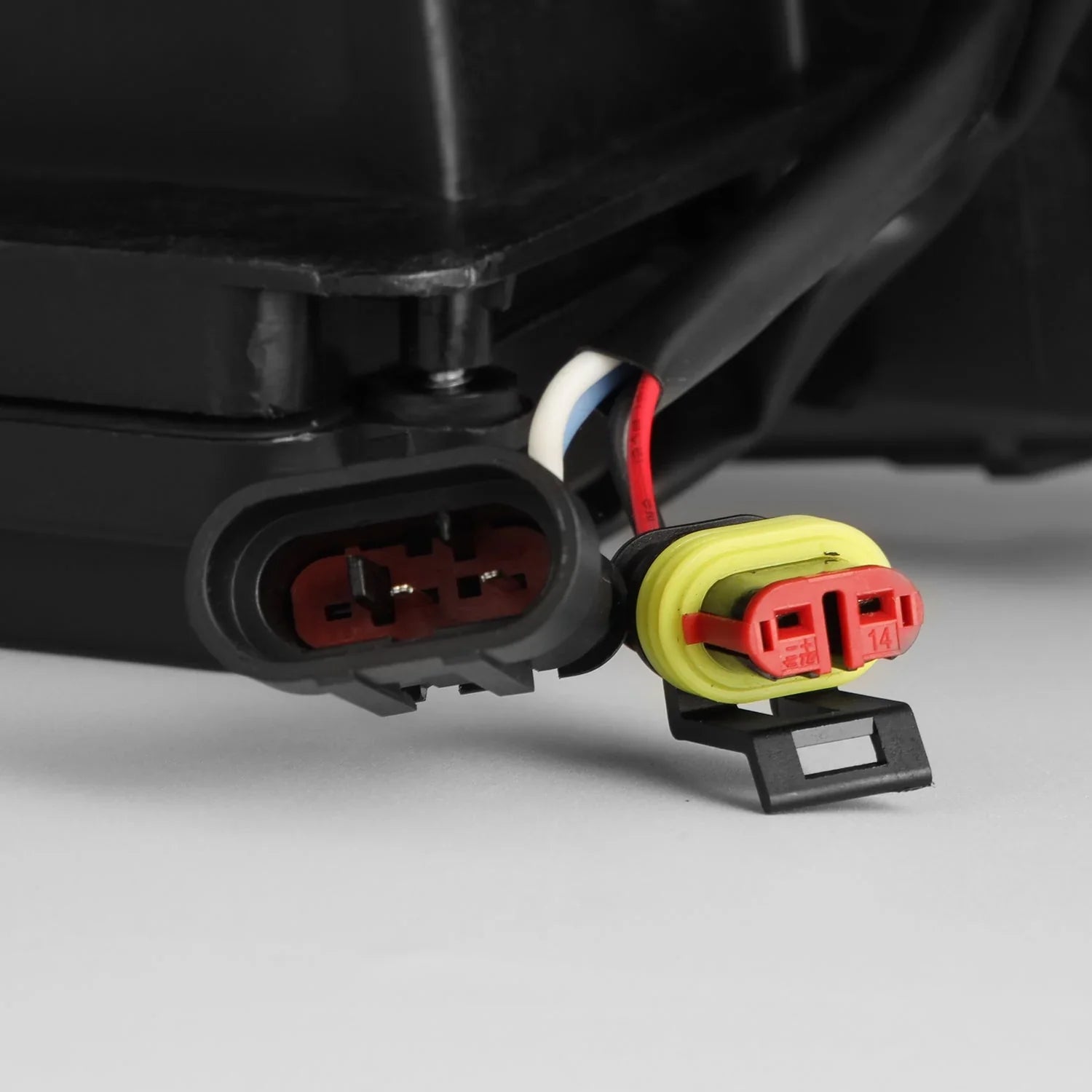

DRL harness: AlphaRex lists it as optional, but notes that some vehicles need it for the headlights to work properly. It gives a brighter DRL and the lock/unlock activation sequence. One harness serves both headlights: the end with the fuse taps goes on the driver side (Horn 15A and Towing-IGR 7.5A fuse locations), and a yellow wire connects to the passenger-side headlight.
Important: AlphaRex says not to use dielectric grease or any weather-sealing grease on the connectors or sockets. It causes connection problems and isn't covered by the warranty.
Tools: 10mm socket with an extension, a push-clip removal tool, a Phillips screwdriver and a T2 Phillips screwdriver.
▸ AlphaRex NOVA 2024-2026 Tacoma / 2025-2026 4Runner Headlights FAQ
What vehicles do the AlphaRex NOVA 880326 headlights fit?
They fit the 2024-2026 Toyota Tacoma (4th Gen) and the 2025-2026 Toyota 4Runner (6th Gen). If you're not sure about your truck, email info@offroadusa.com with your VIN before you order.
How many projectors do the NOVA-Series headlights have?

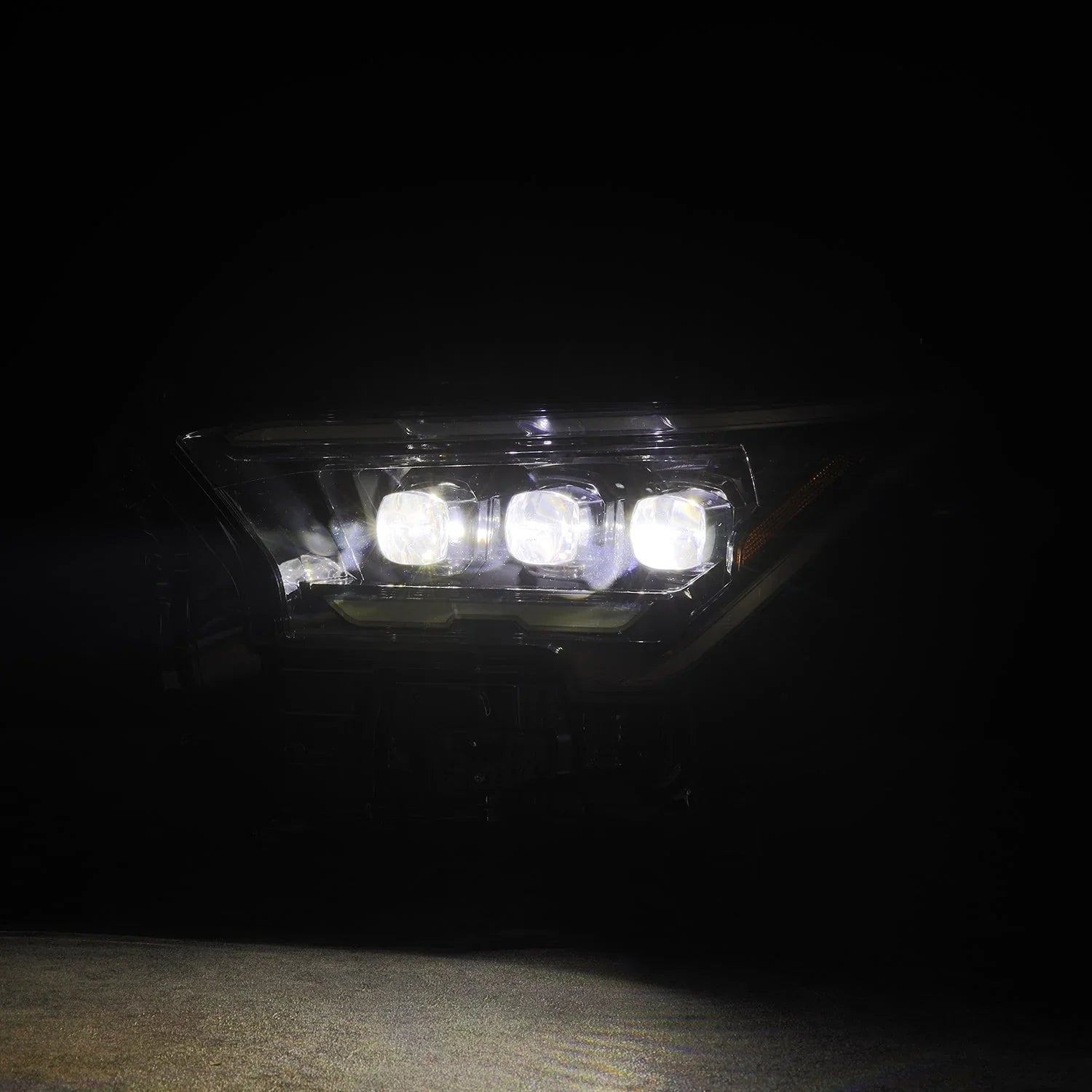

Three Ice Cube 3D projectors per headlight. All three work as low beams, and the inner projector also provides the high beam.
Can I choose a white or amber DRL?
Yes. The LED tube's daytime running light can be set to white or amber. The same tube is the sequential turn signal and, with AlphaRex's DRL harness installed, plays an activation light sequence when you lock or unlock the vehicle.
Are these headlights DOT and SAE compliant?
AlphaRex states they meet SAE and DOT FMVSS108 requirements, with a projection cut-off line designed for US (left-hand-drive) roads. Aim them after installation so the cut-off sits correctly.
How hard is the installation?
Plan on a bumper-off job. AlphaRex's 2024-2025 Tacoma guide covers removing the intake snorkel, cooling plate and front bumper, swapping the headlights, and routing the DRL harness. You need basic hand tools (see Installation above). If you're not comfortable removing a bumper, use a professional installer.
Do I need to install the DRL harness?
AlphaRex lists the DRL harness as optional, but notes that some vehicles need it for the headlights to work properly. It also gives a brighter DRL and the lock/unlock activation sequence. One harness covers both headlights: its fuse-tap end goes on the driver side (Horn 15A and Towing-IGR 7.5A fuse locations), and a yellow wire connects to the passenger-side headlight.
What's the difference between the NOVA and LUXX headlights for the 4th Gen Tacoma?
NOVA is AlphaRex's top series, with three Ice Cube 3D projectors per headlight. LUXX is AlphaRex's second-tier series, with dual projectors powered by AlphaRex LUXX LEDs. Both have the LED tube with selectable white or amber DRL, sequential turn signal and activation light.
Can I use dielectric grease on the connectors?
No. AlphaRex says dielectric or weather-sealing grease causes connection problems and isn't covered by the warranty.
What warranty do AlphaRex headlights have?
AlphaRex gives a 2-year manufacturer warranty covering defects in design and manufacturing. Installation errors, labor and misuse aren't covered.
Compatibility
|
Design
Headlights Technology
Discover the pinnacle of automotive innovation with AlphaRex's NOVA-Series LED headlights, featuring the revolutionary Ice Cube 3D projectors. Engineered with precision and powered by Osram Oslon Black Chip LEDs for low beam outputs and AlphaRex LUXX LEDs for dual beam outputs, these 4th gen Toyota Tacoma / 6th gen Toyota 4Runner NOVA-Series Headlights embody AlphaRex's patented design for unparalleled performance and reliability. With a perfect projection cut-off line designed to meet American LHD regulations, our NOVA-Series headlights guarantee legal compliance. Experience stunning projections that meet DOT/SAE requirements, setting a new standard in automotive lighting.
Moreover, as the top series in our product line, the NOVA-Series boast all the essential lighting features, including activation light, sequential turn signal, and selectable white or amber DRL (for most newly developed NOVA headlights and MK II for earlier models). Elevate your 4th gen Toyota Tacoma / 6th gen Toyota 4Runner with NOVA-Series headlights, delivering superior performance, quality, and a touch of sophistication that sets your vehicle apart on the road.
Light Feature
 |
Activation light is a dynamic startup sequence that activates when you unlock your vehicle or start up your parking lights, depending on the product variant. |
 |
Sequential signal is a dynamic turn signal pattern that flows from one end to the other, providing clear indication of your intended turn direction. |
 |
DRL (Daytime Running Light) refers to a lighting feature where the light tube illuminates with white LEDs during both daytime and nighttime conditions. This not only adds a stylish touch to the headlights but also enhances visibility, making it easier for vehicles ahead to notice those behind them. |
 |
Selectable White/Amber DRL (Daytime Running Light) offers the flexibility to choose between white LED or amber LED illumination for the light tube during both daytime and nighttime. The white DRL complements all vehicle colors, while the amber DRL adds an off-road or stylish aesthetic that pairs well with other lighting features. This versatile feature not only enhances the appearance of the headlights but also improves visibility, making it easier for vehicles in front to notice those behind them. |
Housing
Crafted from high-quality polypropylene (PP), our headlights housing ensure durability and longevity. With its exceptional resistance to heat and moisture, polypropylene enhances the performance and longevity of these 4th gen Toyota Tacoma / 6th gen Toyota 4Runner NOVA-Series Headlights, guaranteeing optimal functionality in various conditions. Choose our headlights for a perfect blend of style and reliability, transforming the look of your 4th gen Toyota Tacoma / 6th gen Toyota 4Runner while maintaining top-tier performance.

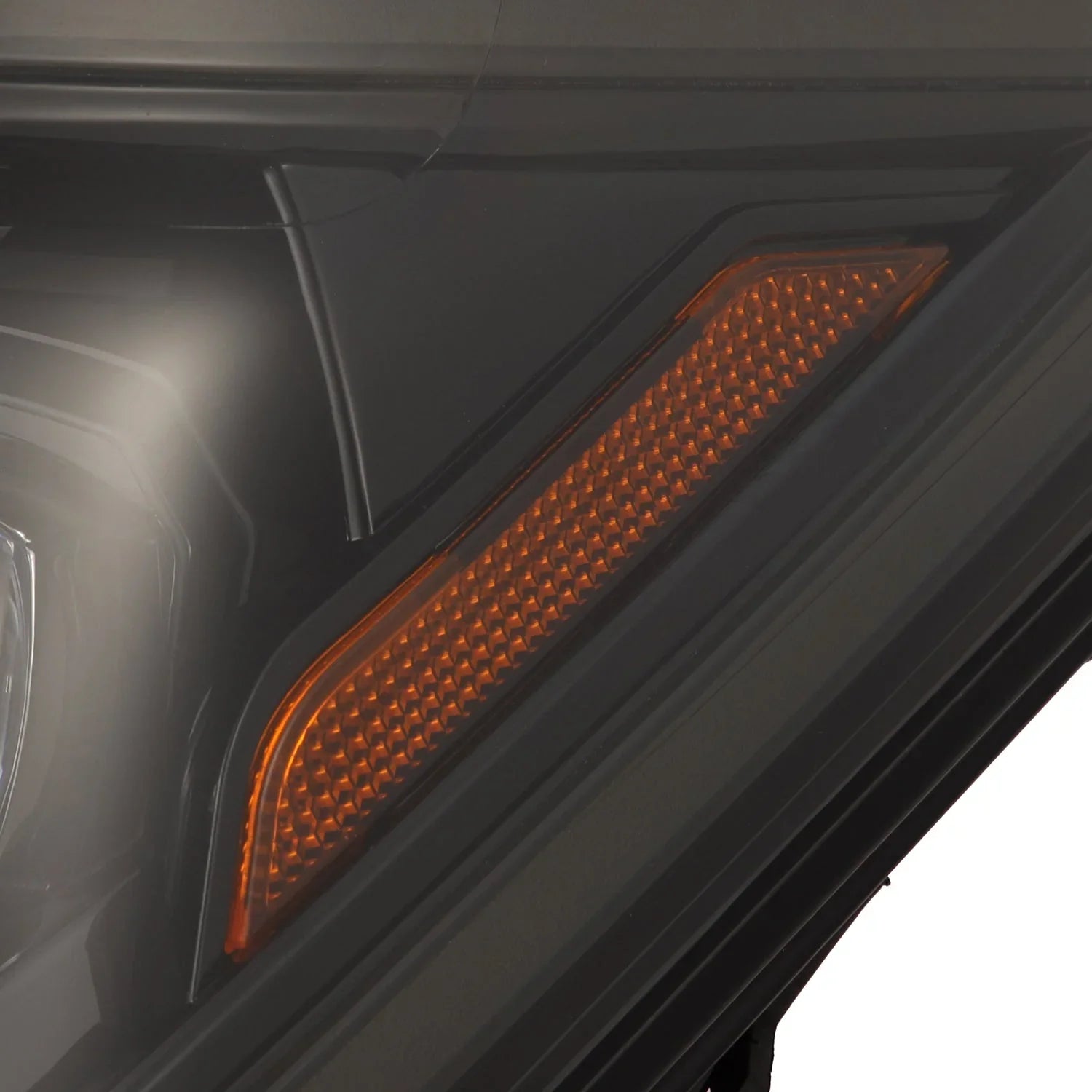

Experience the sleek sophistication of our 4th gen Toyota Tacoma / 6th gen Toyota 4Runner NOVA-Series Headlights in Alpha-Black themed housing, specially designed with a glossy black finish and black accents to give your 4th gen Toyota Tacoma / 6th gen Toyota 4Runner a sporty chrome-delete appearance.
(Demo picture for Alpha-Black themed housing.)

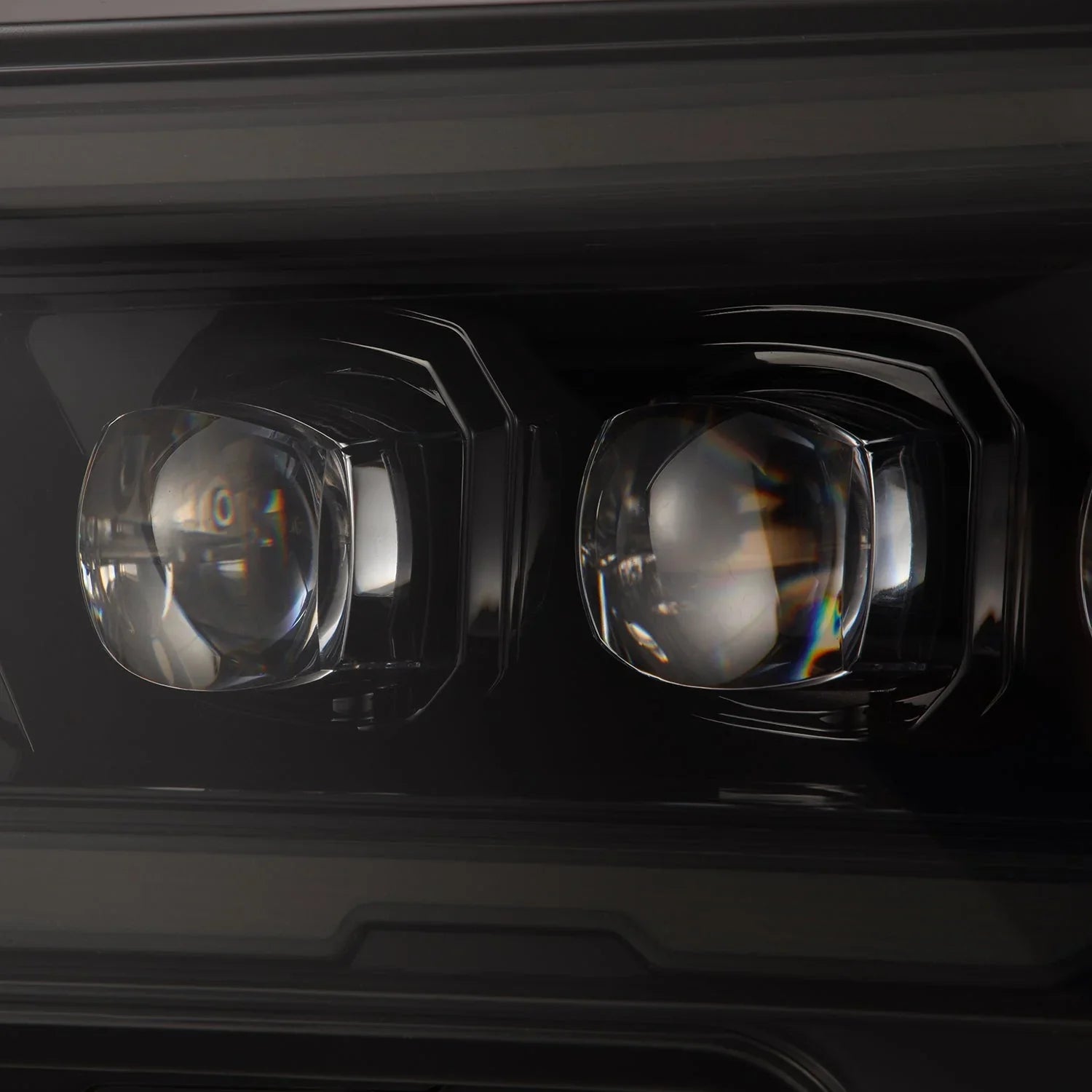

Lens
Crafted from high-quality polycarbonate plastic, our 4th gen Toyota Tacoma / 6th gen Toyota 4Runner NOVA-Series Headlights are designed to withstand extreme weather conditions while delivering exceptional lighting performance. To ensure optimal light output in all conditions, we apply a layer of anti-fog agent to the headlight lens, reducing the risk of fogging and improving visibility. Additionally, we apply another coating to the lens that protects against yellowing and oxidation, keeping your headlights looking like new for longer. Choose our 4th gen Toyota Tacoma / 6th gen Toyota 4Runner NOVA-Series Headlights for your 4th gen Toyota Tacoma / 6th gen Toyota 4Runner and enjoy reliable, high-performance lighting that can withstand even the toughest weather conditions.
(Demo picture of our Headlight Lens.)

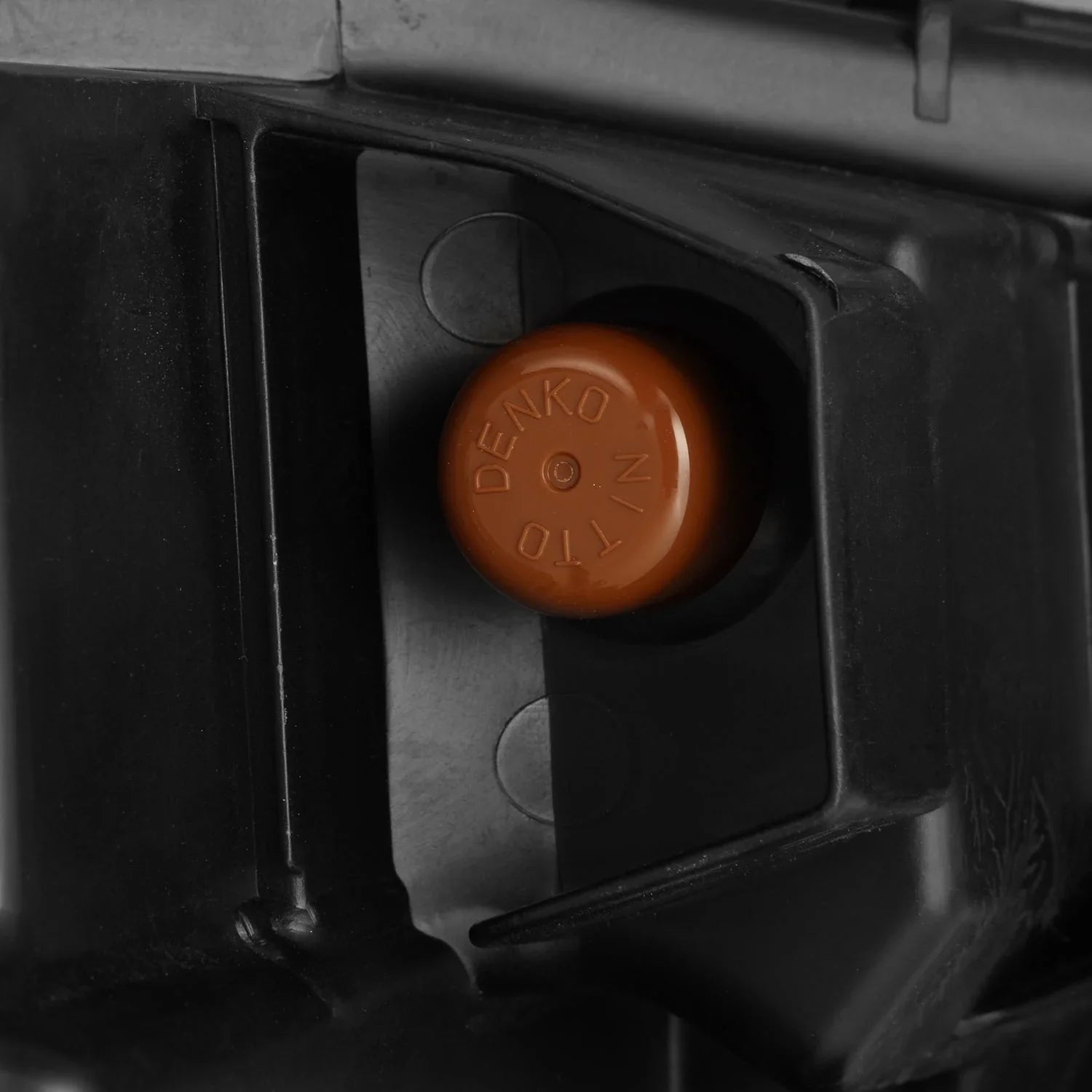

Breathing Vents
Preventing condensation in headlights is a common challenge for both OEM and aftermarket products. Despite good seals, moisture can still accumulate inside due to temperature fluctuations. To combat this, we utilize Nitto Denko TEMISH® CAPSEAL™ air vents, facilitating efficient moisture discharge for our 4th gen Toyota Tacoma / 6th gen Toyota 4Runner NOVA-Series Headlights. These vents enhance airflow within the headlights, allowing moisture to escape more easily, akin to a breathing action, earning them the moniker "Air Breathers."
Product Detail
| SKU |
880326 |
|---|---|
| UPC |
810015619117 |
Compatibility
| Fitment |
|---|
Weight/Dimension
| Weight | 21 lb |
|---|---|
| Length | 23 in |
| Height | 25 in |
| Width | 14 in |
Light Output Spec
| Low Beam |
Osram Oslon Black Flat LED / Alpharex Luxx LED |
|---|---|
| High Beam |
Osram Oslon Black Flat LED |
Lens Spec
| Lens Material |
Polycarbonate (PC) |
|---|---|
| Lens Color |
Clear Lens |
Housing Spec
| Housing Material |
Polypropylene (PP) |
|---|---|
| Housing Color |
Alpha-Black |
