Ford Transit Aluminum Ceiling Furring Kit

Ford Transit Aluminum Ceiling Furring Kit

$552.00 USD
$552.00 USD
Sale Sold out
Shipping calculated at checkout.
Van Length
Include Pre-Cut Birch

Shipping & returns

Shipping is calculated at checkout by size and destination. Most in-stock gear ships within a few business days; large freight items (campers, racks, bumpers) are made to order. Wrong fitment? Send it back within 30 days — we'll help you find the part that does fit.

Fitment & build help

Not sure if this fits your platform? Tell us your year, make, model, and trim — we'll confirm before you order. For bigger builds, we'll help you plan the full stack.

Warranty

Every product on this site ships through authorized channels with full manufacturer warranty. If something breaks in normal use, we'll help you get it resolved.

View full details

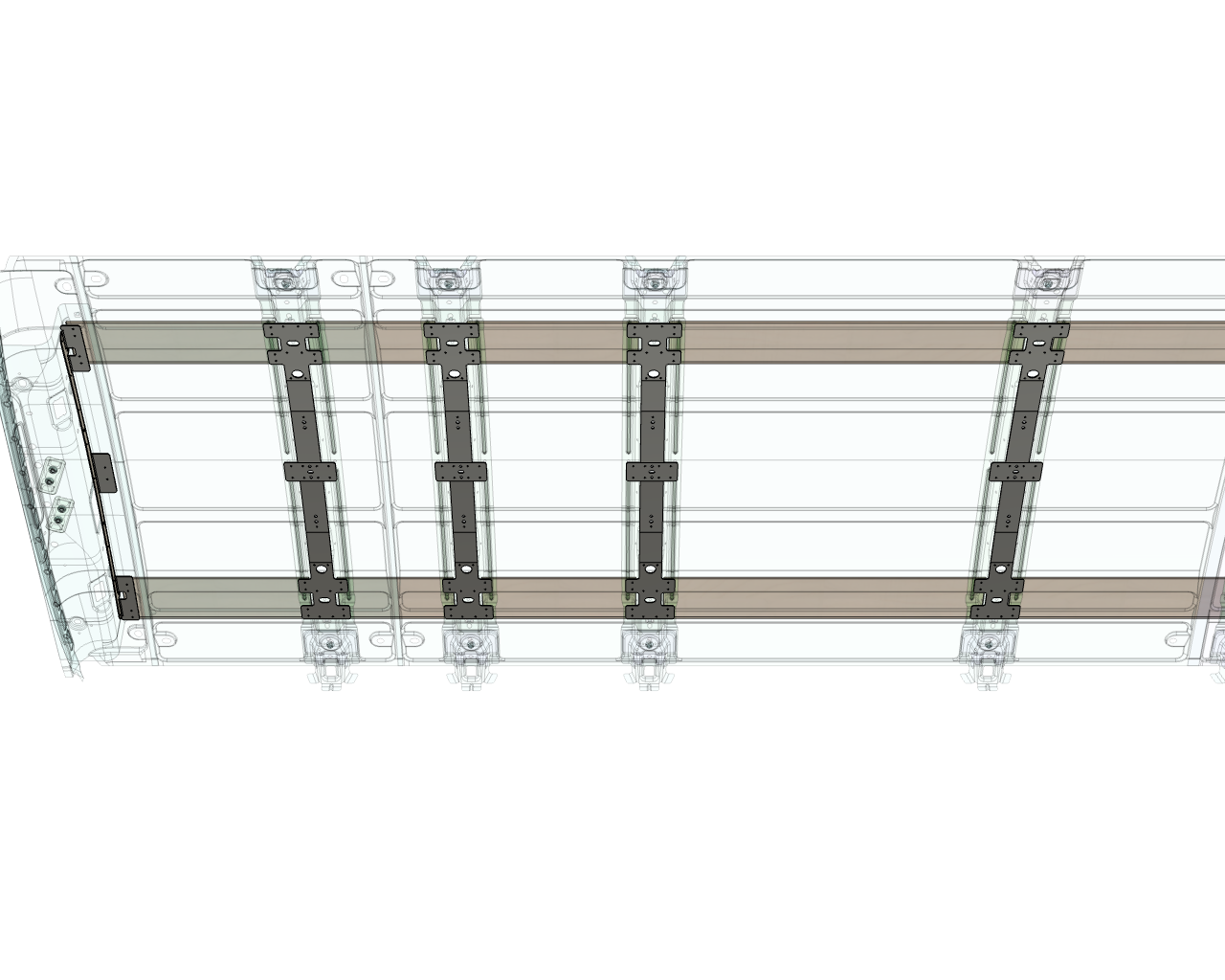

This low-profile aluminum ceiling furring kit gives your Ford Transit ceiling the structural support it needs with lasting durability. It is made from .063 inch aluminum, so it will not rust or corrode, and you can install it with screws, rivets or adhesive.

See our installation video HERE.

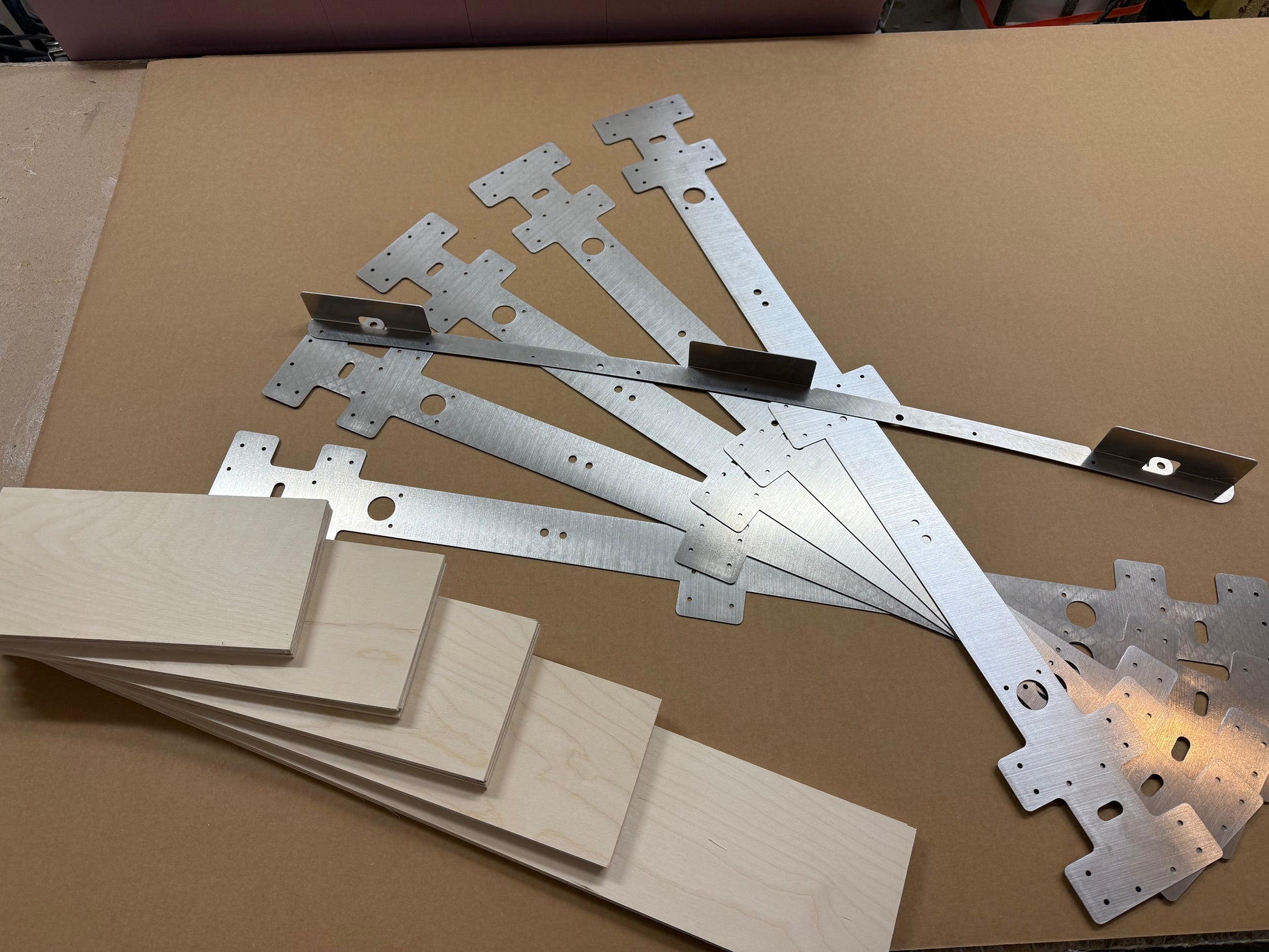

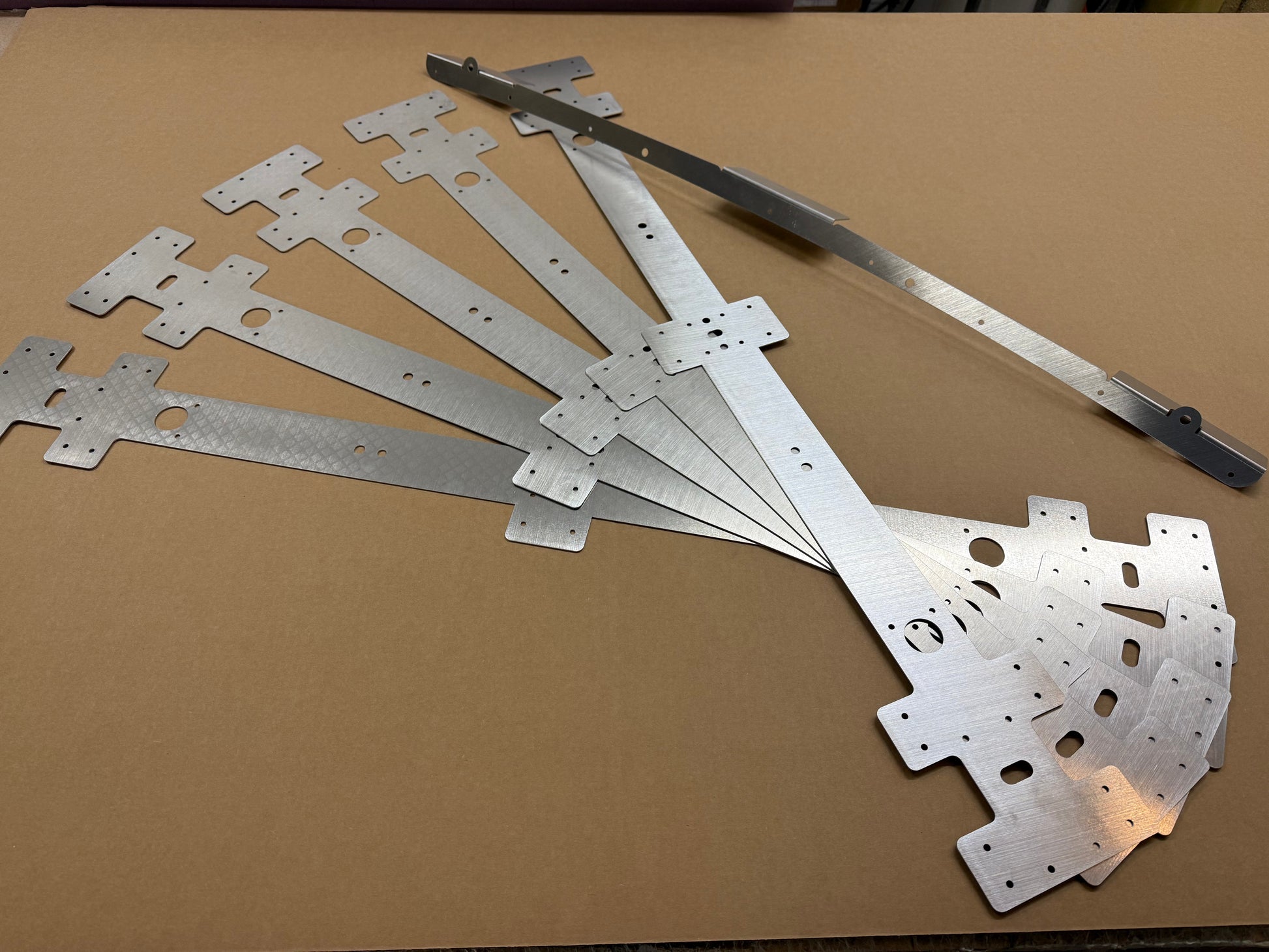

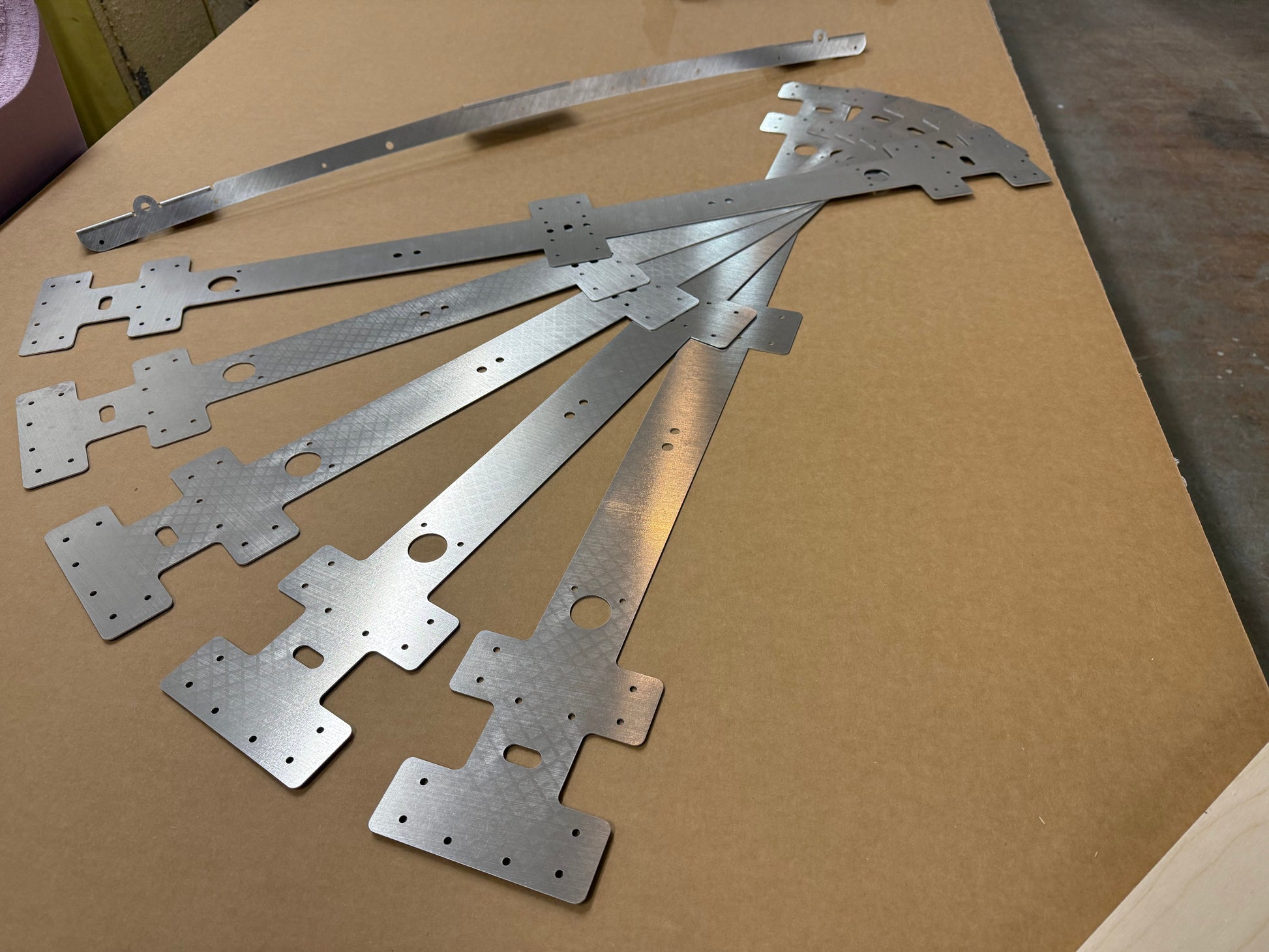

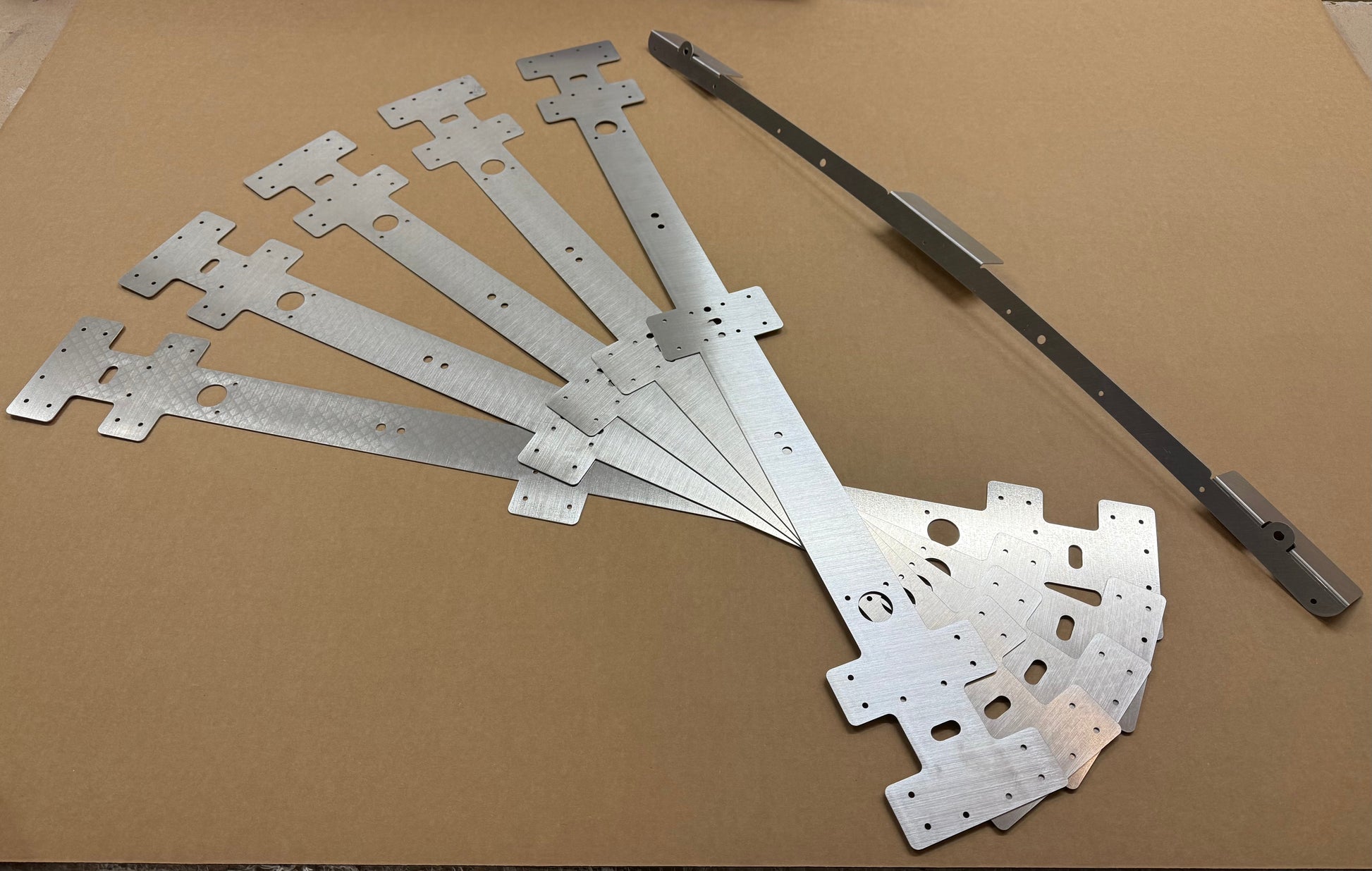

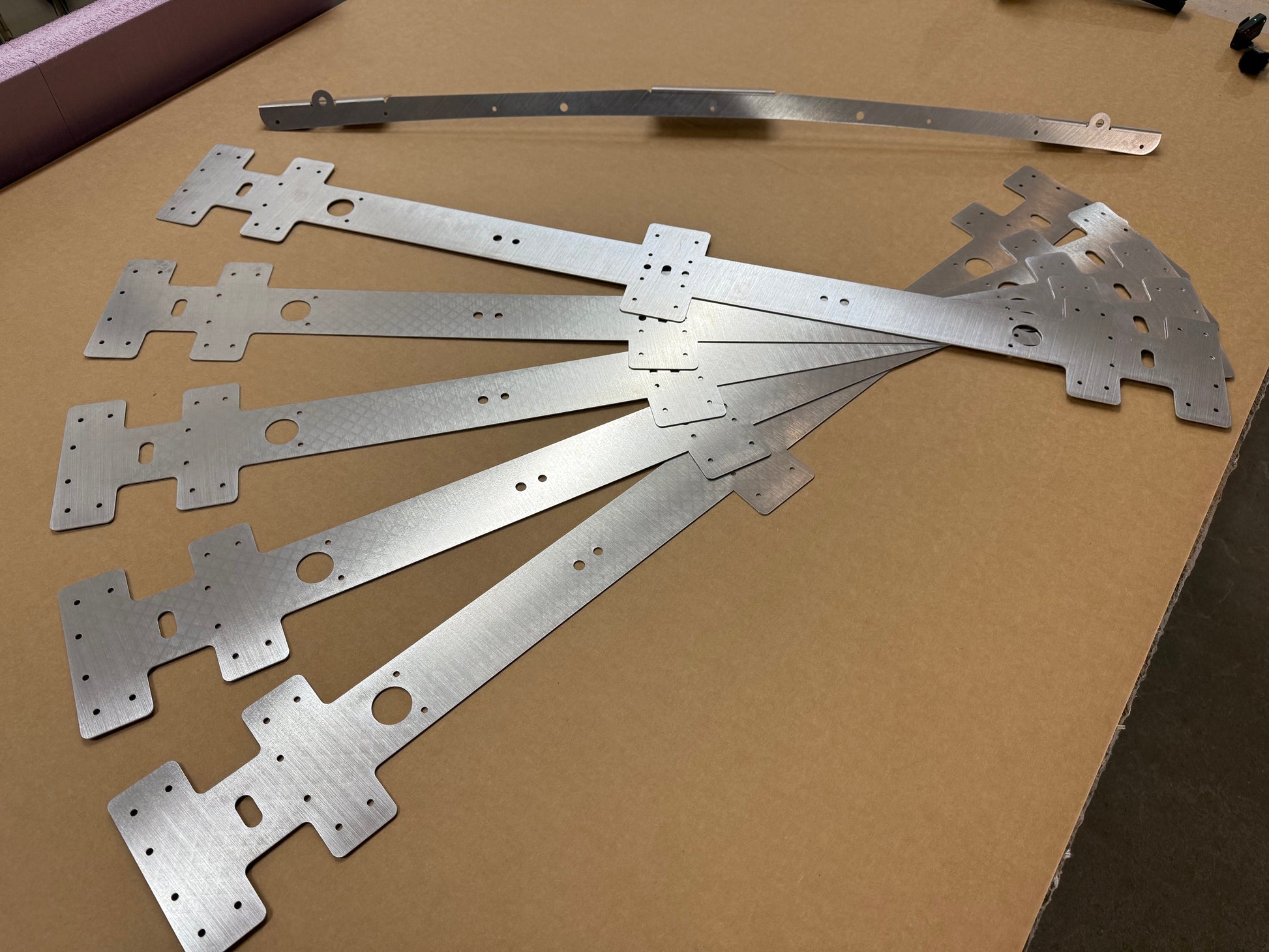

What Is in the Aluminum Ceiling Furring Kit

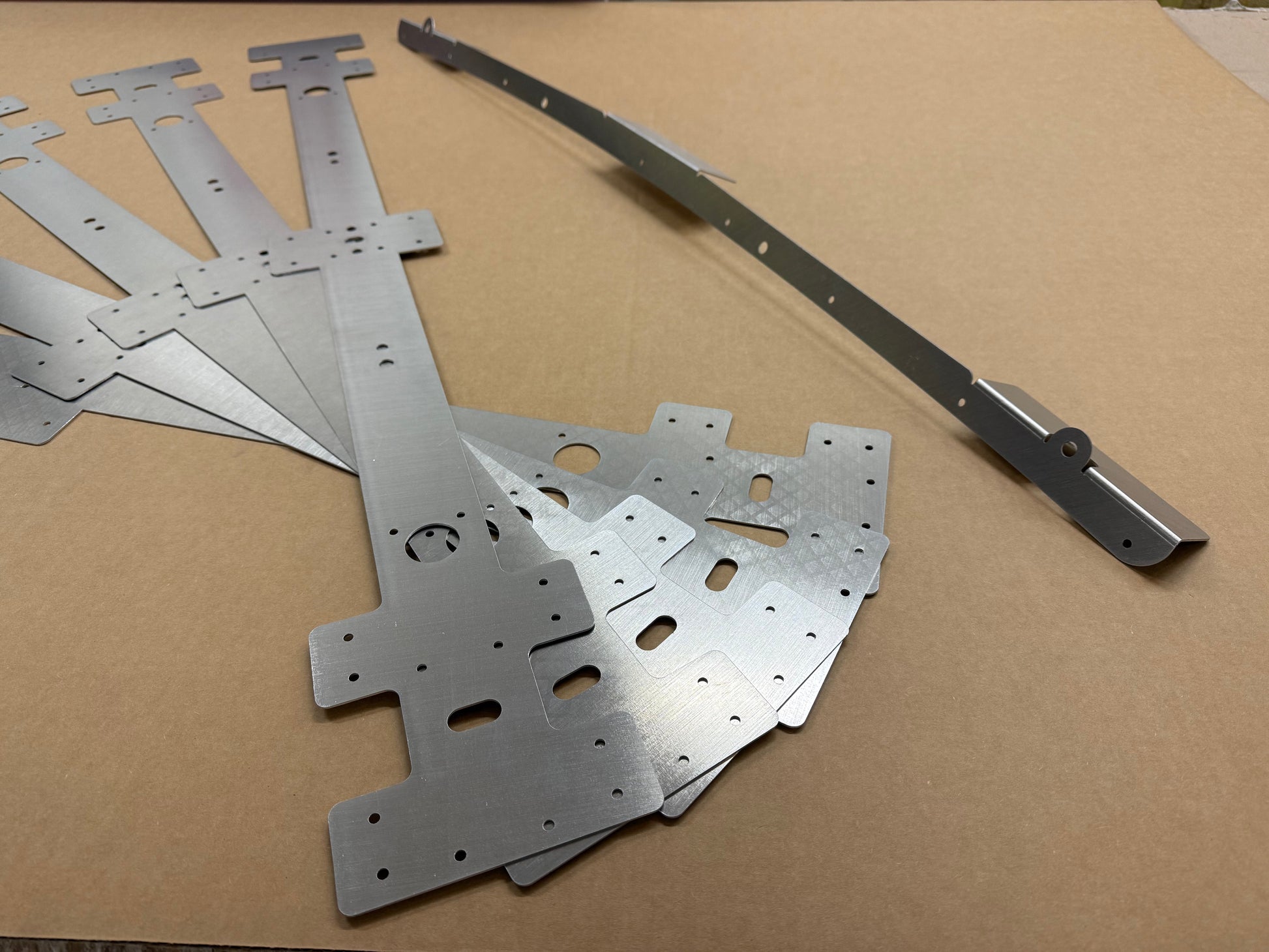

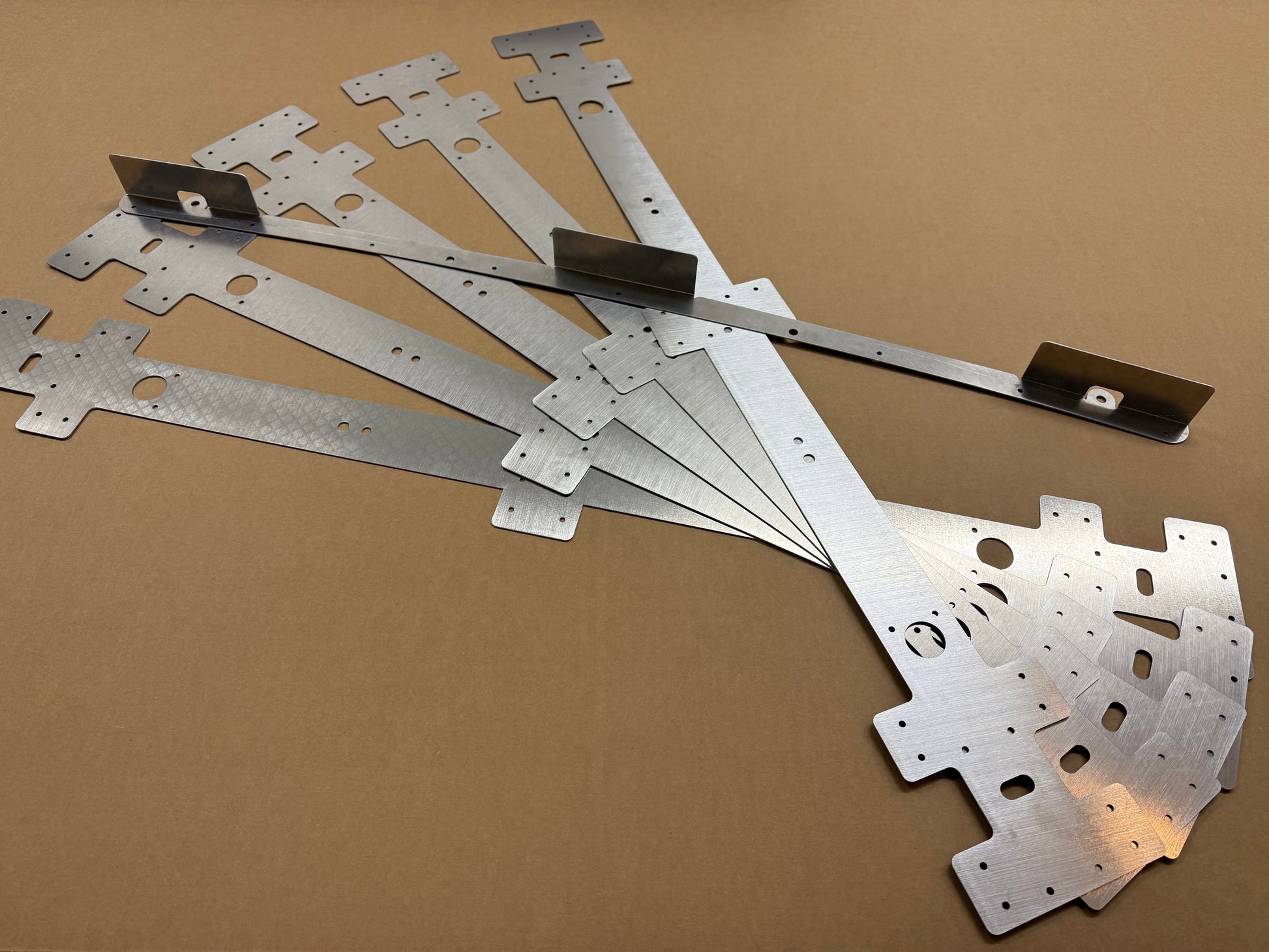

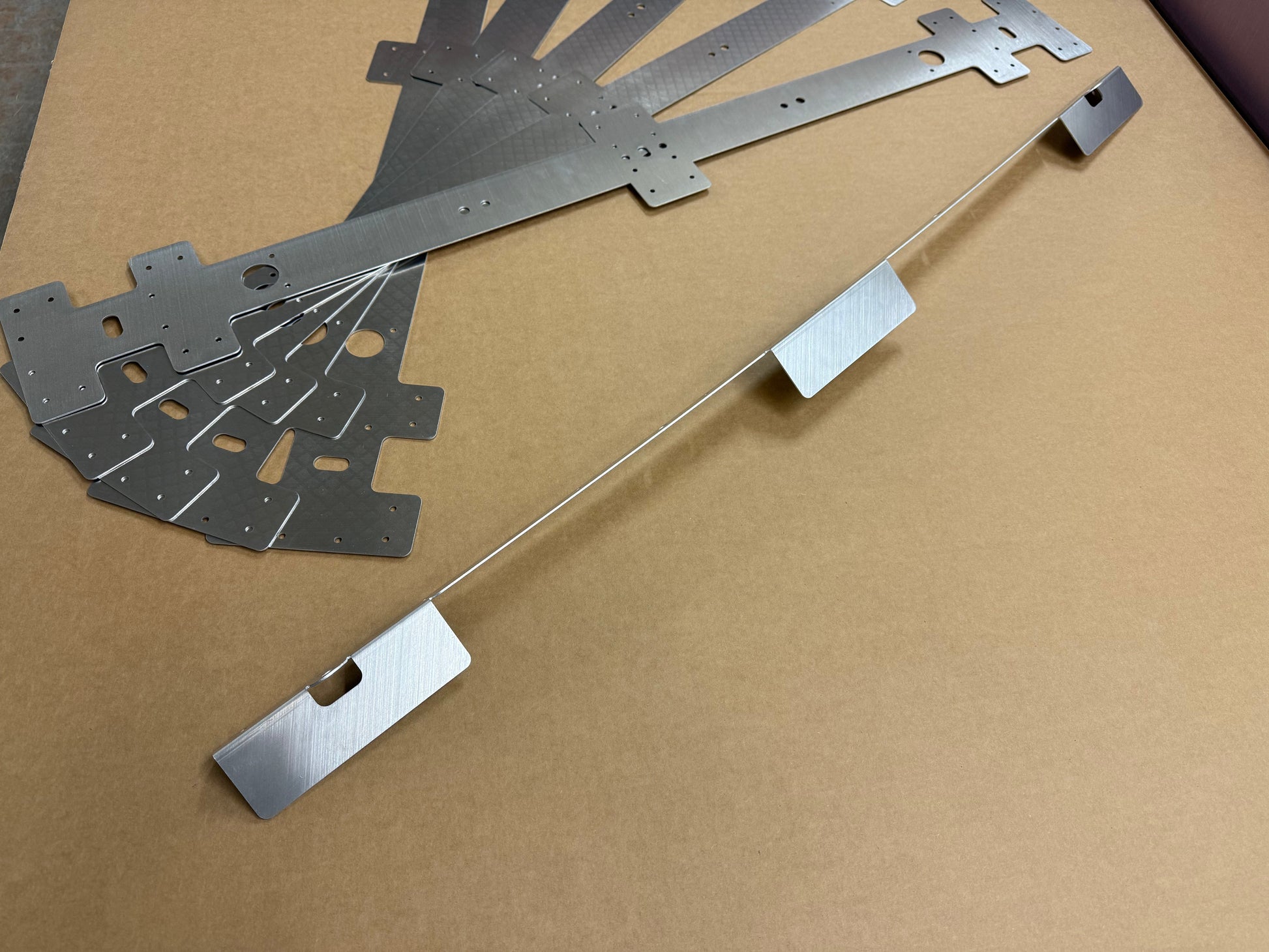

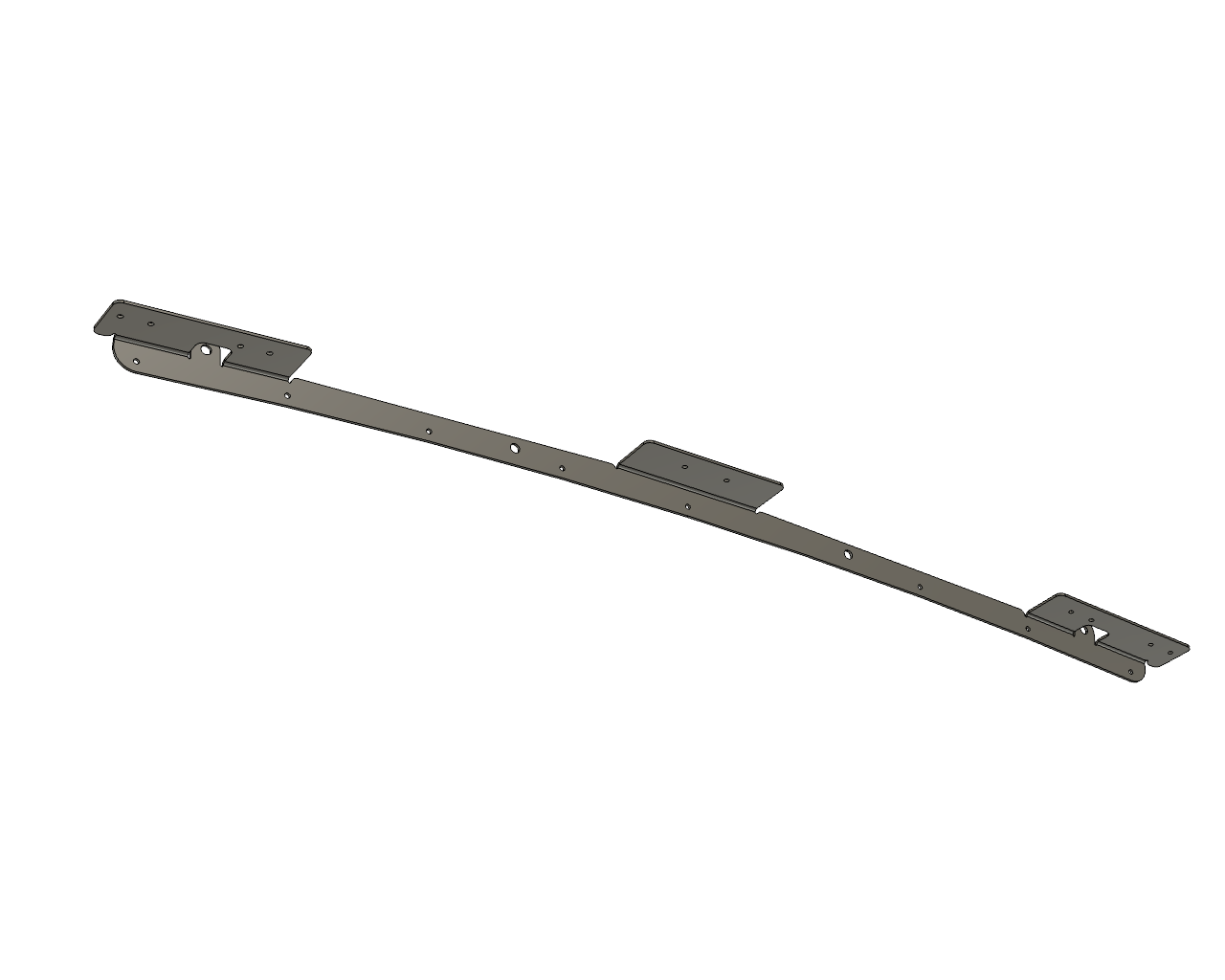

  • Rear trim piece: lines up with factory holes for precise placement.

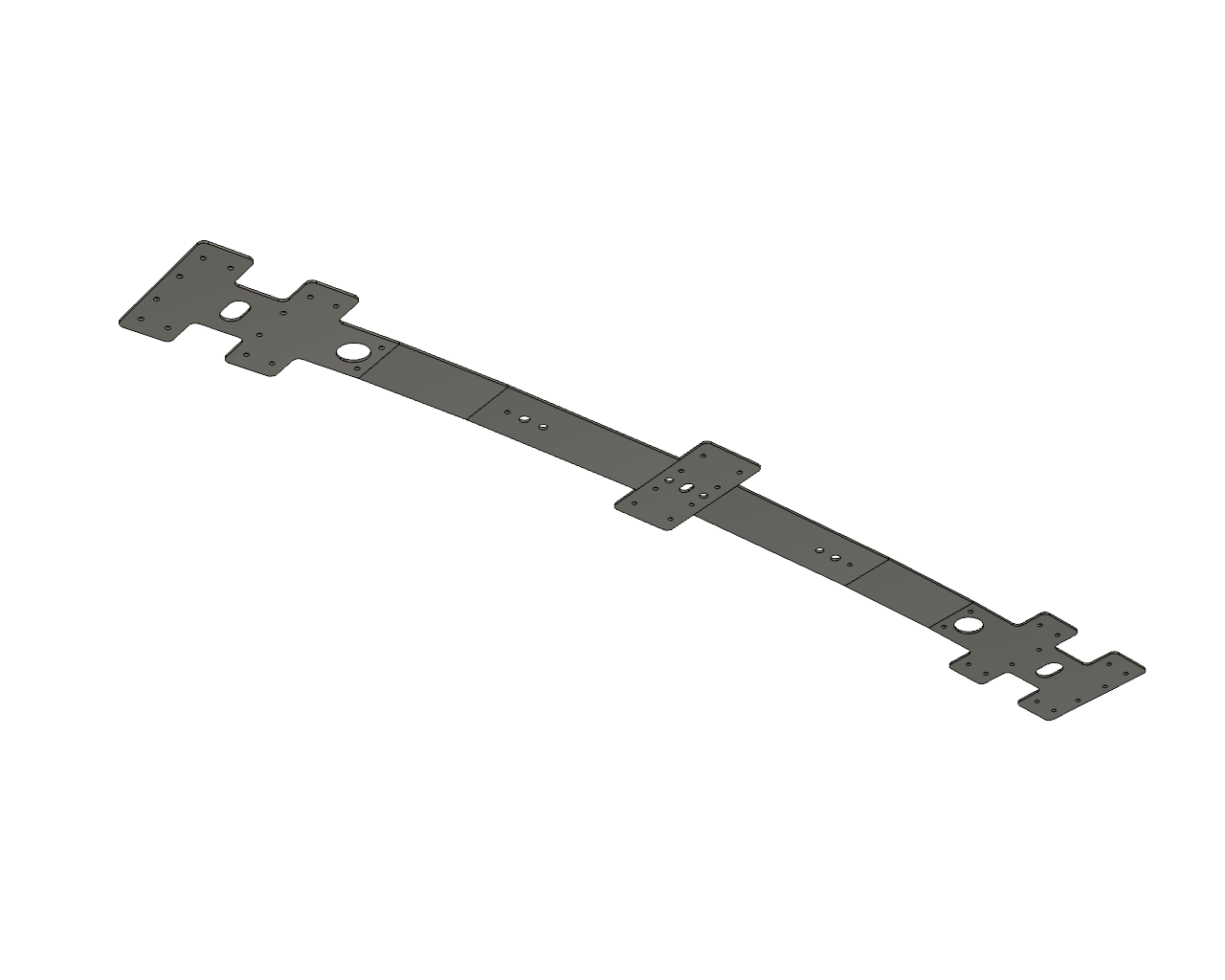

  • Furring brackets: one per roof rib, 5 for EXT models and 4 for LB models.

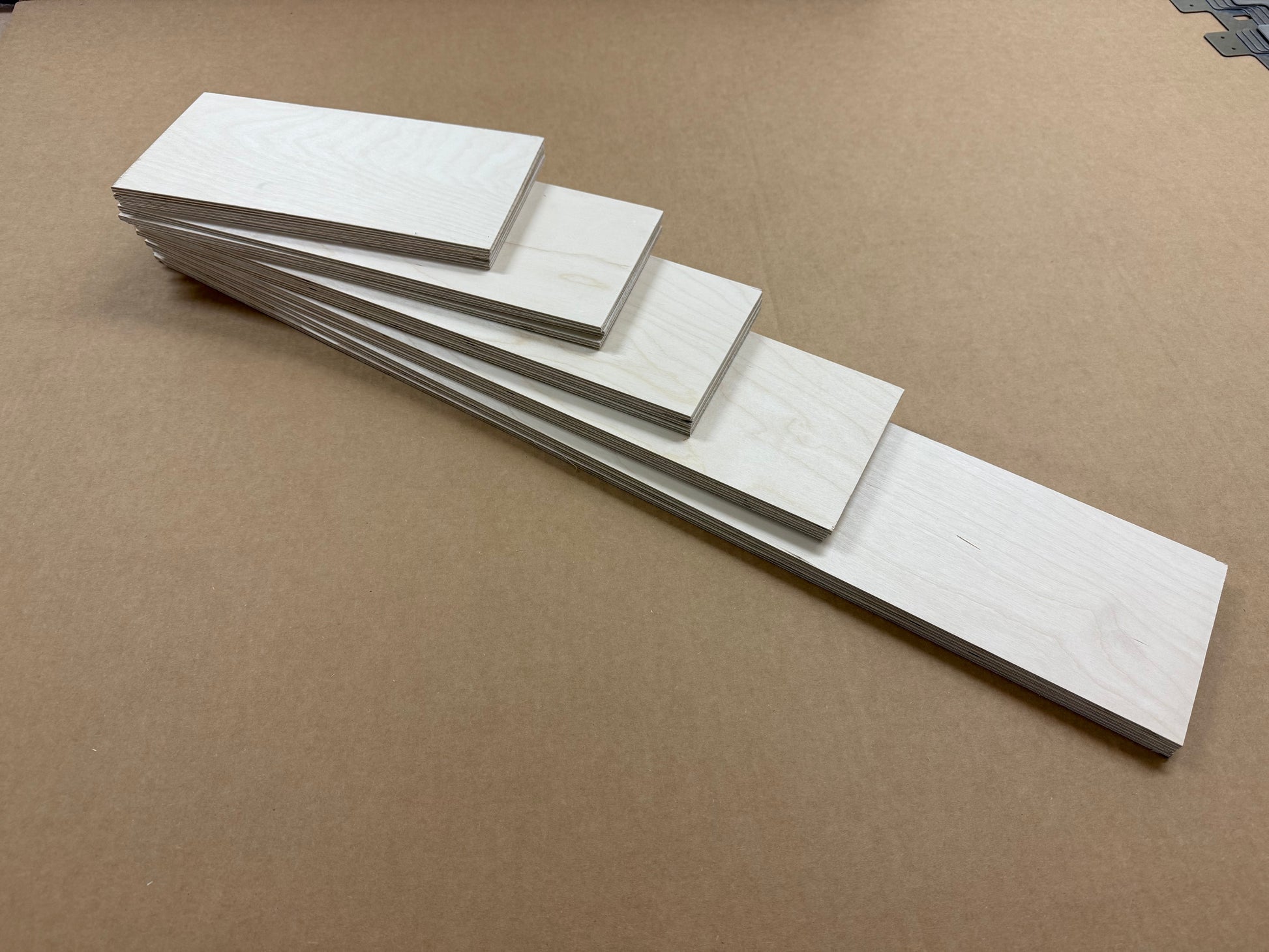

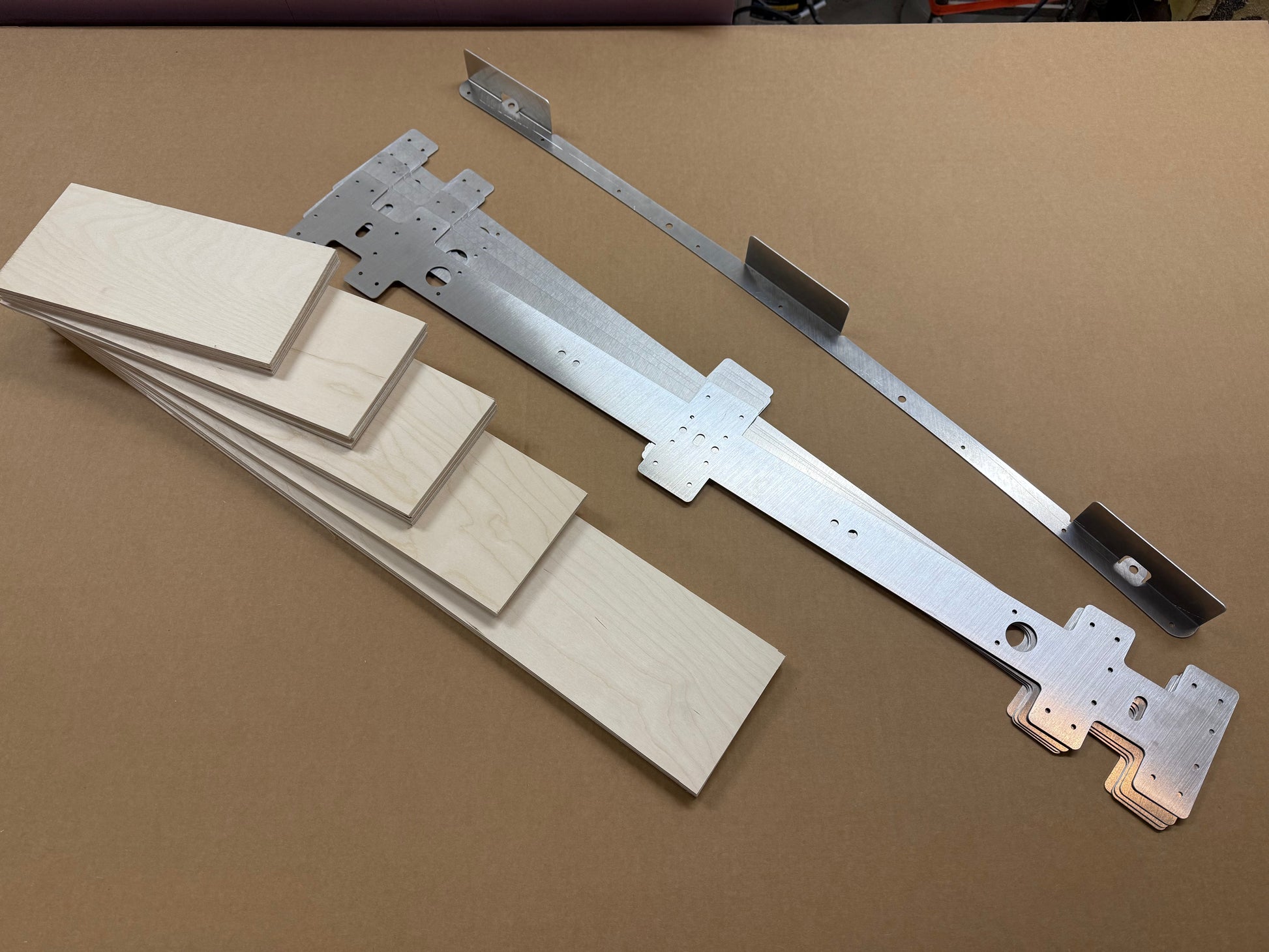

  • Optional pre-cut Baltic birch strips: choose "Yes" to include them, or cut your own.

Strip Sizes and Cut List

The brackets hold .25 inch strips. If you cut your own, all strips are 6 inches wide, with 3 of each length below.

  • EXT: 26, 36, 17.25, 13 and 21 inches.
  • LB: 26, 36, 17.25 and 9 inches.

Note: thicker material may need mitered ends or measurement changes for a proper fit.

How to Install the Ceiling Furring

Start at the rear with the trim piece, using the factory holes to set its position. Next, fasten one bracket to each roof rib. Slide your .25 inch strips into the brackets, working from front to back. Check that the strips sit flat and even before you add your ceiling panel. Plan lights, fans and wiring first, so you can route them between the strips. The install video above shows each step on a real Transit.

Complete Your Ceiling

Pair the ceiling kit with our Ford Transit Van Furring Kit for the walls and Wall to Ceiling Supports. Then add a ceiling panel from our wall and ceiling kits, or see all van furring kits. A flat, even ceiling makes panel seams line up and keeps lights and fans level. Every aluminum ceiling furring kit is designed in our Loveland, Colorado shop.

Ford Transit Aluminum Ceiling Furring Kit options

  • Brand: AVC RIG
  • Van Length: 148lb or 148ext
  • Include Pre-Cut Birch: Yes or No (Cut It Yourself)
  • Built for: Ford Transit
