Your bike rack, on your Atlas. No drilling.

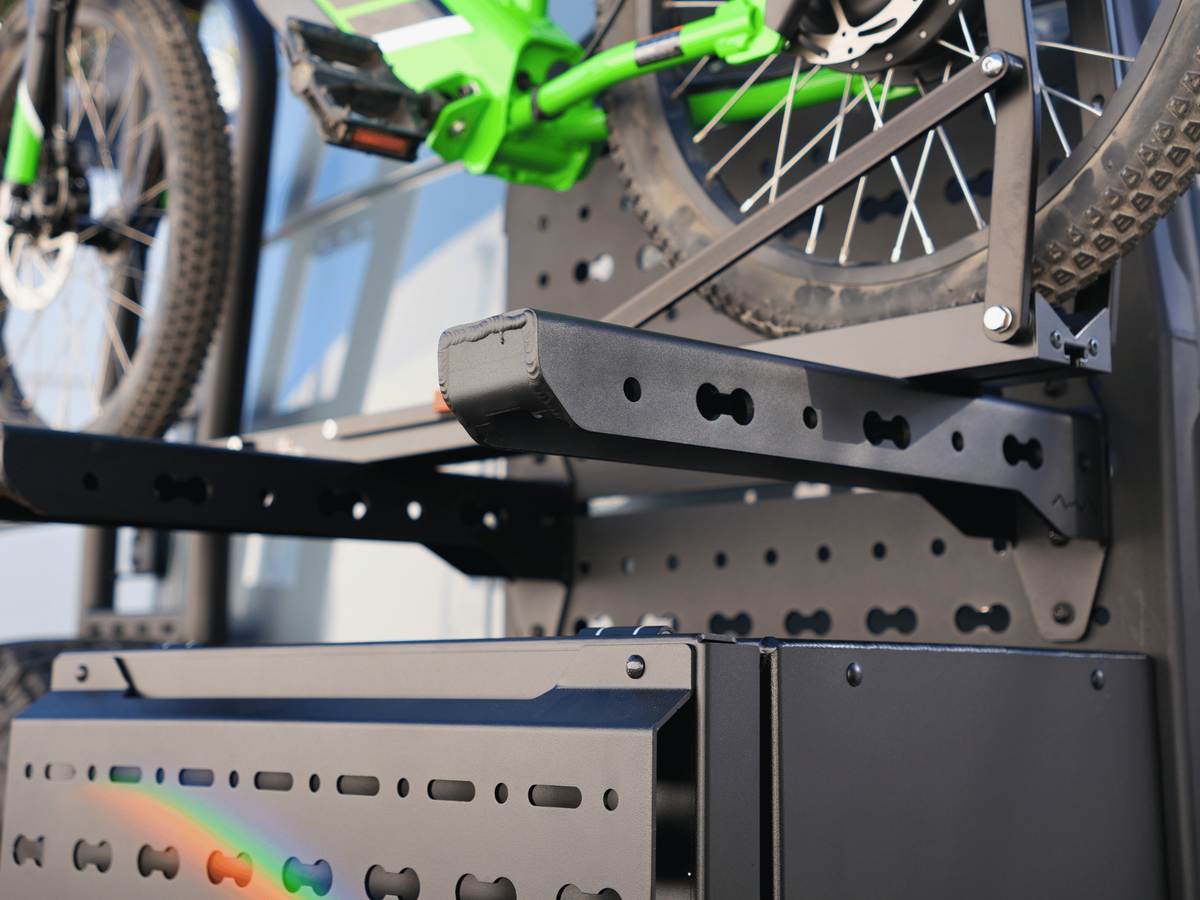

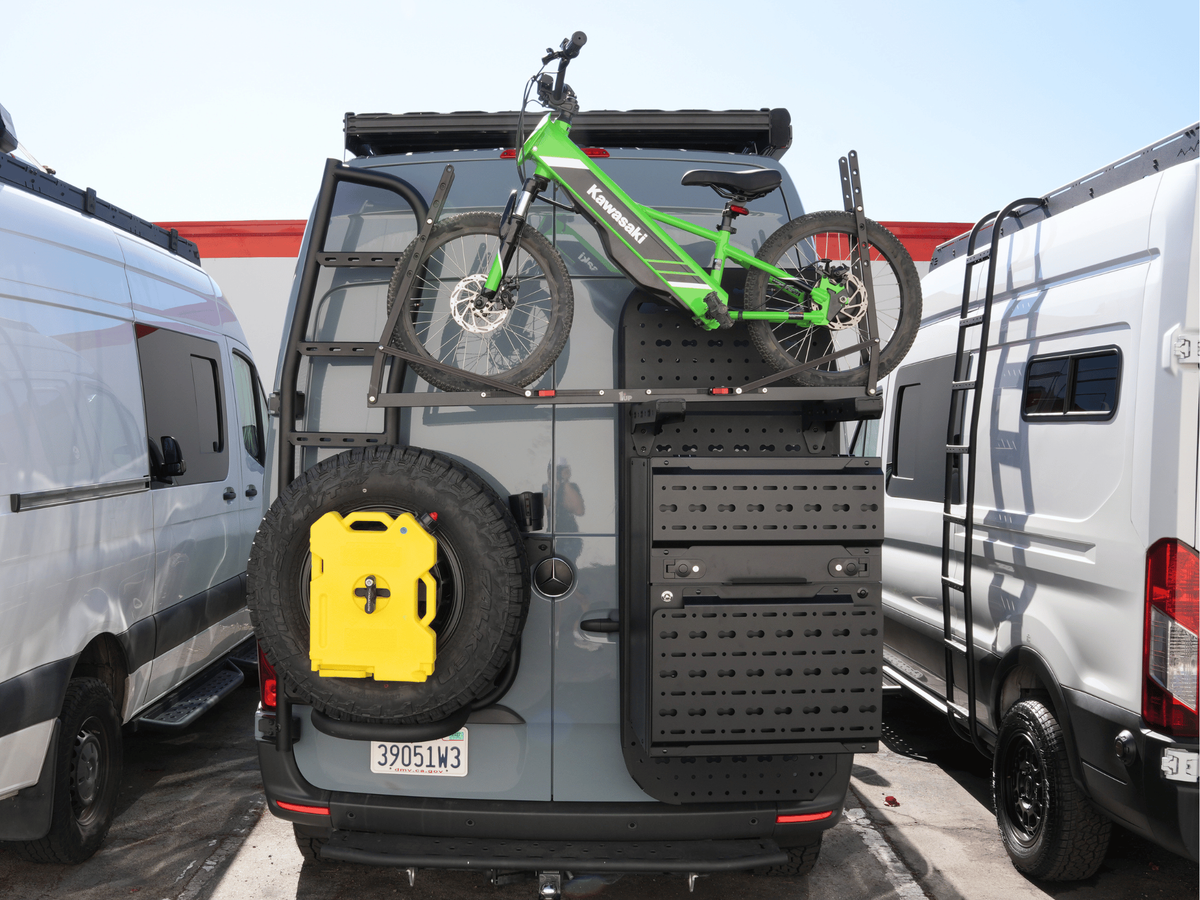

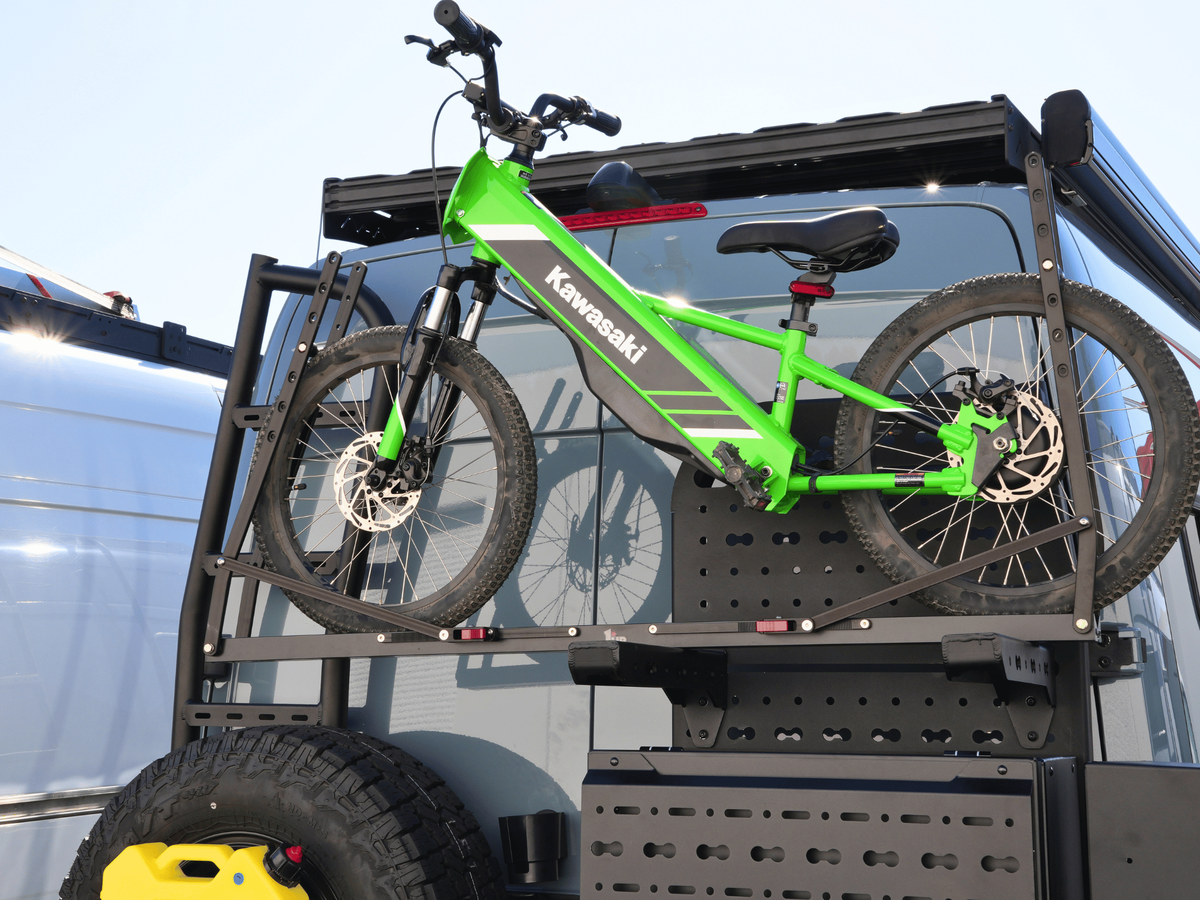

You already have the Atlas on your rear door. Now put a bike on it. The Atlas Bike Rack Adapter bolts straight onto your Atlas rear door rack and gives your tray-style bike rack a solid base to clamp to. It doesn’t replace the bike rack you already own. It just gives that rack a better place to live.
That means no hitch rack blocking your rear doors, no reaching over bikes to get to your gear, and no drilling into your van.
It’s built to carry your bike and its tray. The gusseted mounting plate spreads the weight across the Atlas frame, and the formed channel stays stiff along its full length. Your bike stays put on washboard roads, so you’re not checking the mirror the whole drive.
Most bike adapters only fit one brand of tray, so if you switch racks, the adapter is useless. This one isn’t tied to a brand. Three L-Track slots on the top face and three more on the side, all at the standard 5.5" spacing, mean anything built for L-Track bolts right on. Mount your bike tray today, then add a fork mount, ski clamp or tie-down point later. One adapter that changes as your setup does.
Built to Last
-
Heavy-duty build – a sturdy, solid base for your bike setup

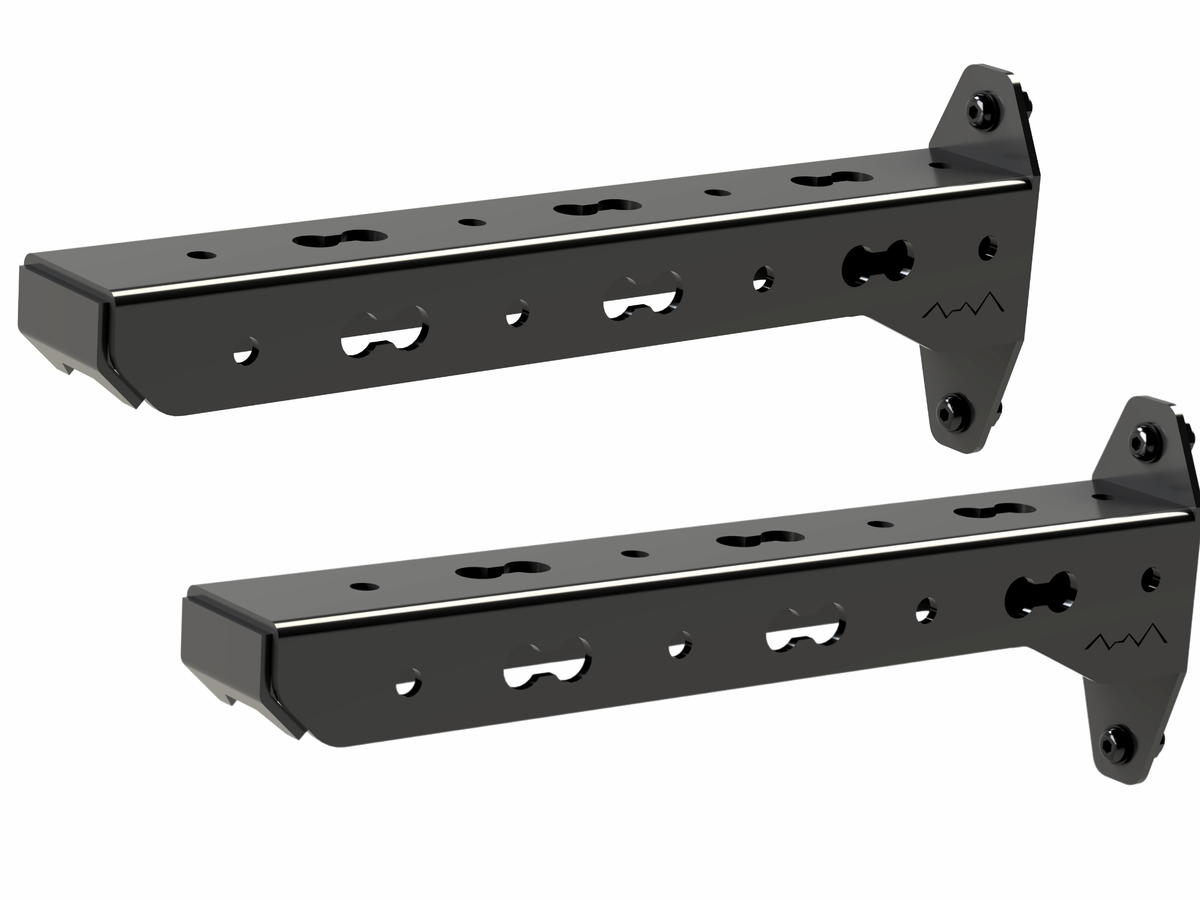

- 20.4" cantilever arm – long enough to hold a bike tray clear of the door

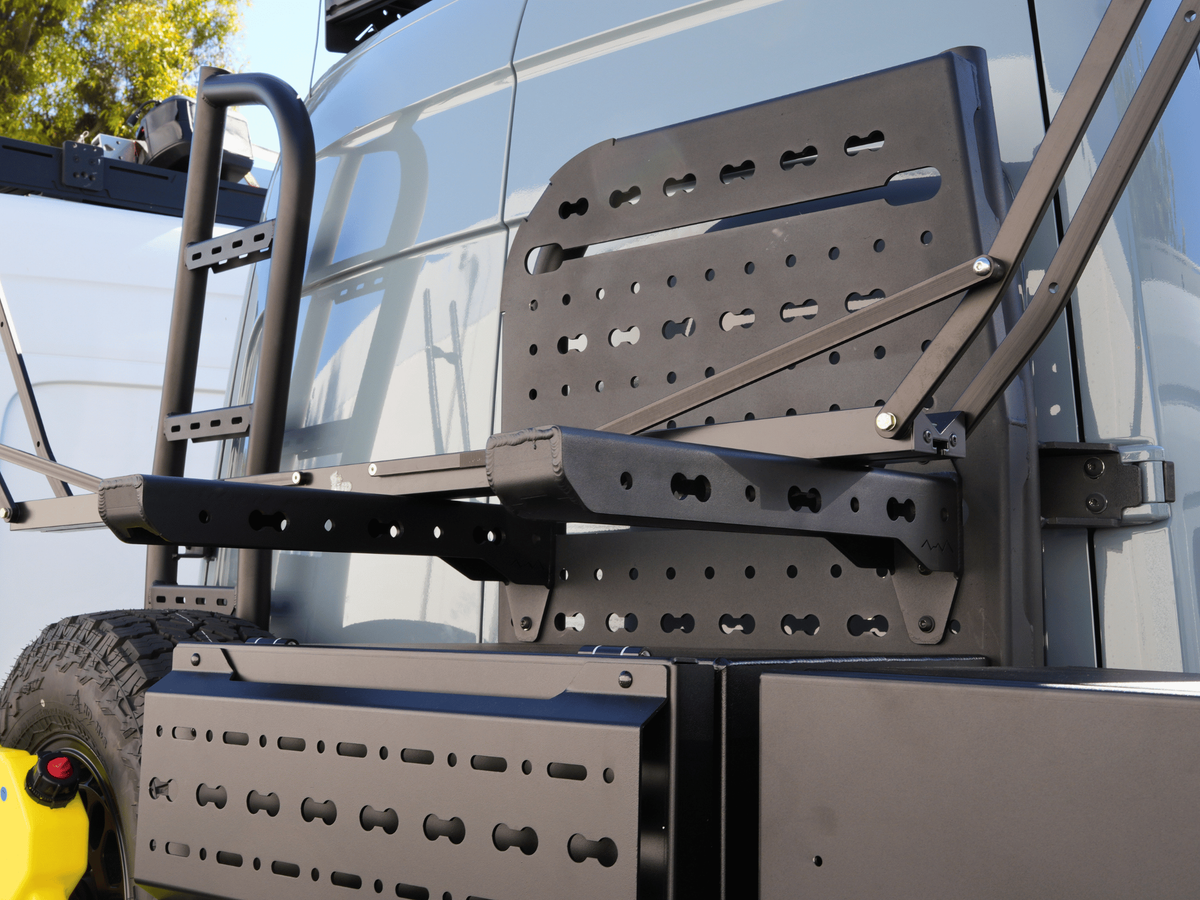

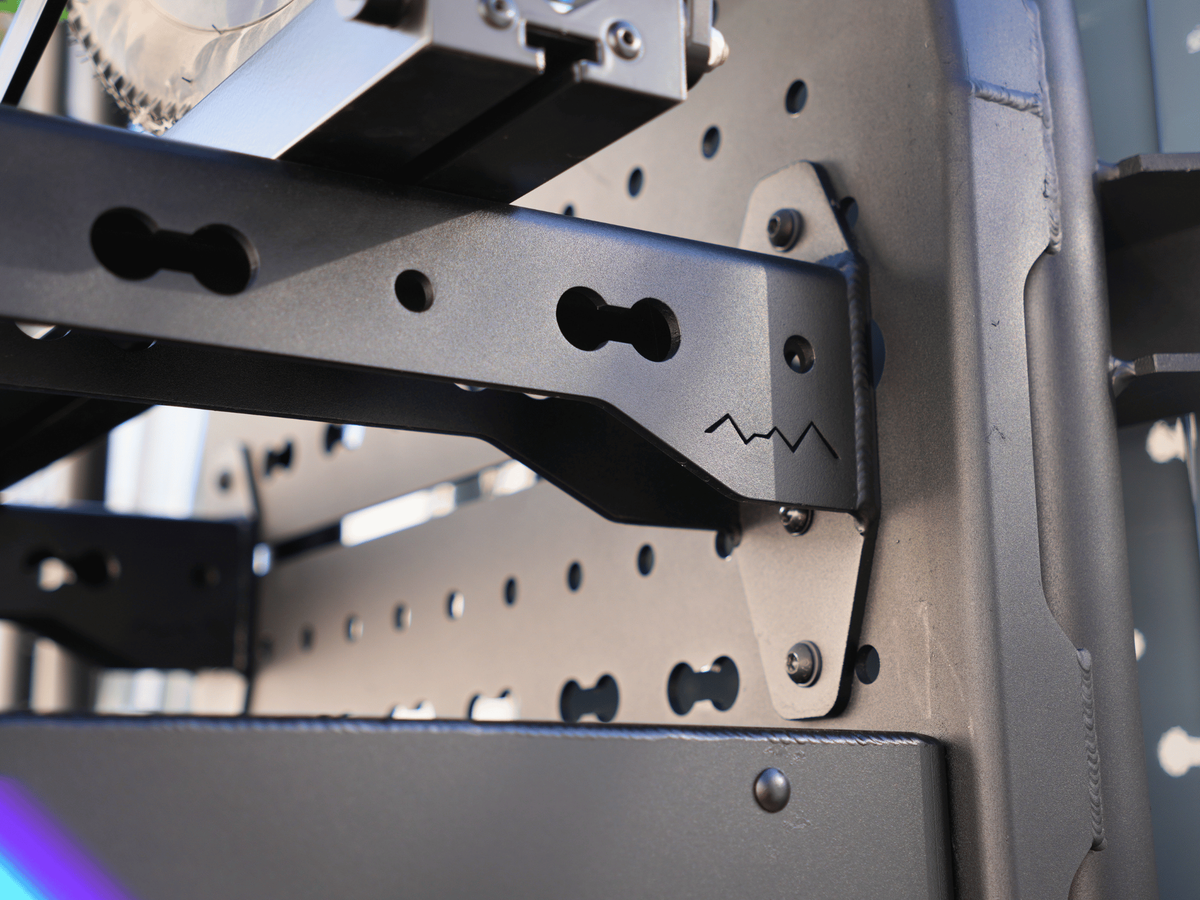

- Gusseted 5.2" mounting plate – spreads the load across the Atlas frame instead of putting it on a single bolt
- Formed channel profile – 2.2" tall and stiff along its full length, so your bike doesn’t bounce on rough roads
- L-Track on two faces – 3 slots on top and 3 on the side for bike trays, fork mounts, ski clamps and tie-downs
- 1/2" mounting holes – room for extra hardware or accessories next to the L-Track slots
- Easy install – mounting hardware included, one wrench and about 15 minutes

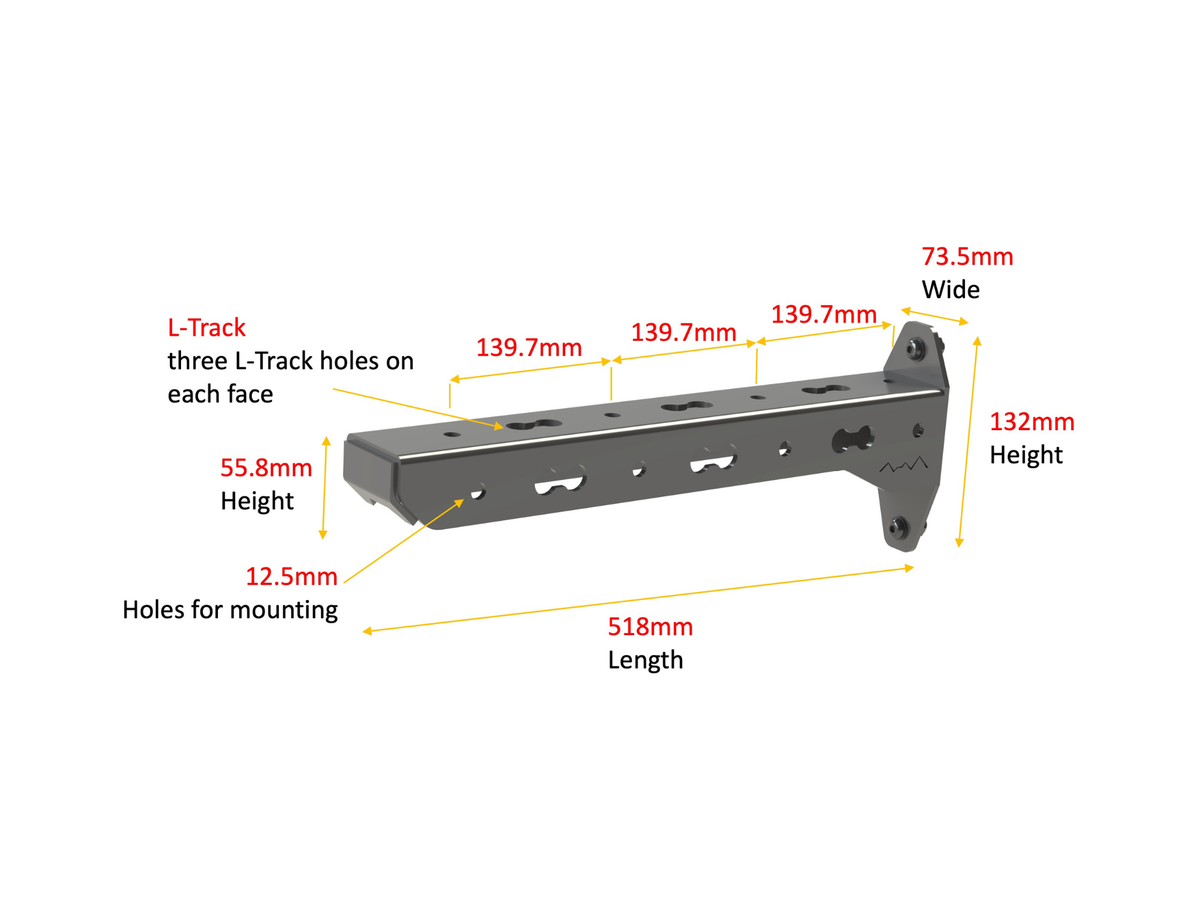

Key Details:
- Length: 20.4" (518mm)
- Channel Height: 2.2" (55.8mm)
- Mounting Plate: 5.2" H × 2.9" W (132mm × 73.5mm)
- L-Track Slots: 3 per face (top and side), 5.5" (139.7mm) spacing
- Mounting Holes: ~1/2" (12.5mm)
Fits
- All White Top Adventures Atlas Rear Door Racks
What’s in the Box
- 1× Atlas Bike Rack Adapter
- Mounting hardware for the Atlas rack
- Bike rack not included
Bring the Bike, Keep the Doors Clear
Put your bike where it belongs, on the rack you already trust, without giving up access to your rear doors.
