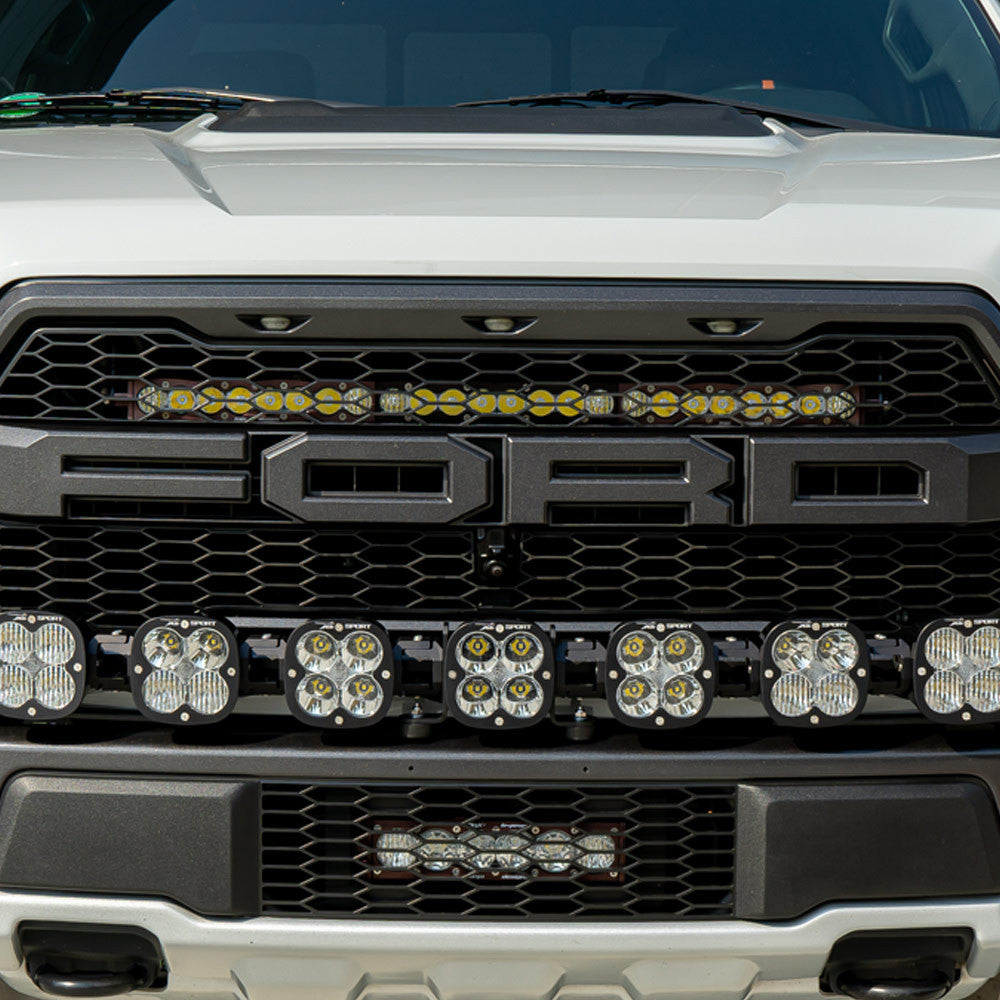

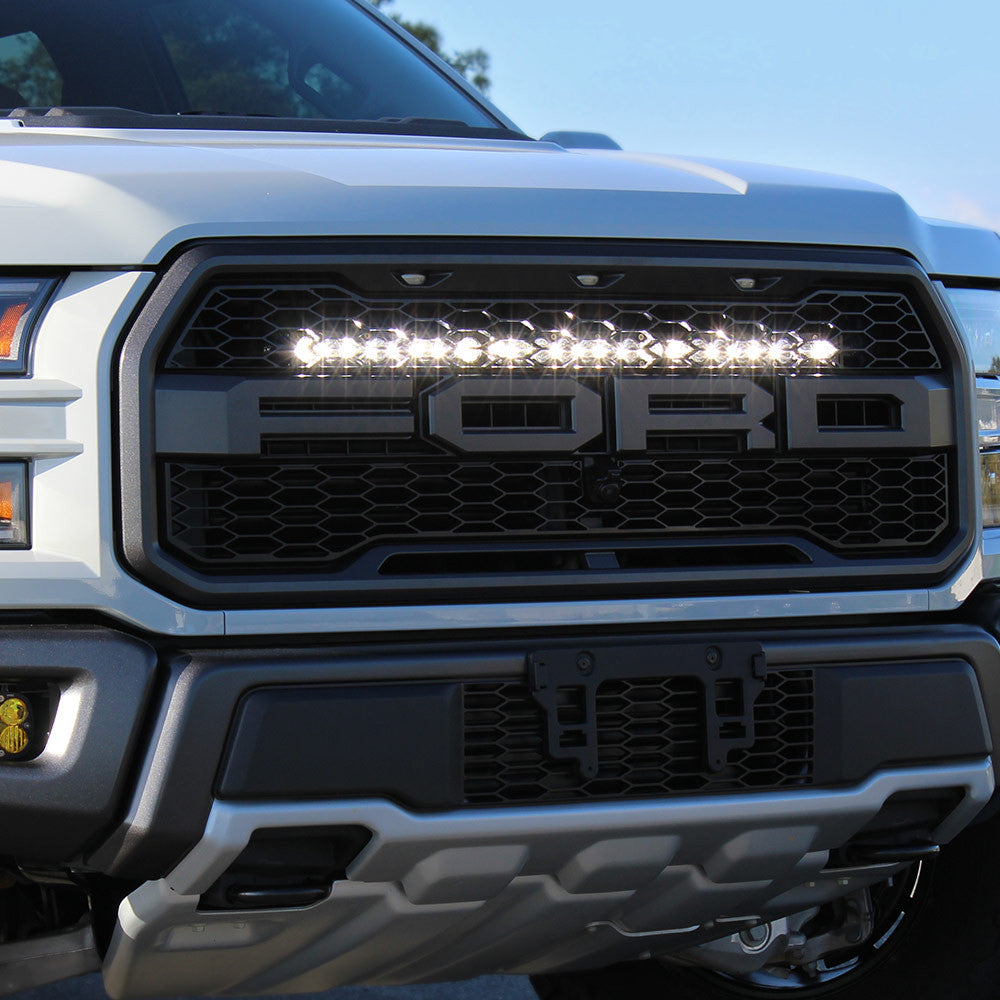

Baja Designs Ford S8 30 Inch Grille Upper Light Bar Kit
$1,054.95

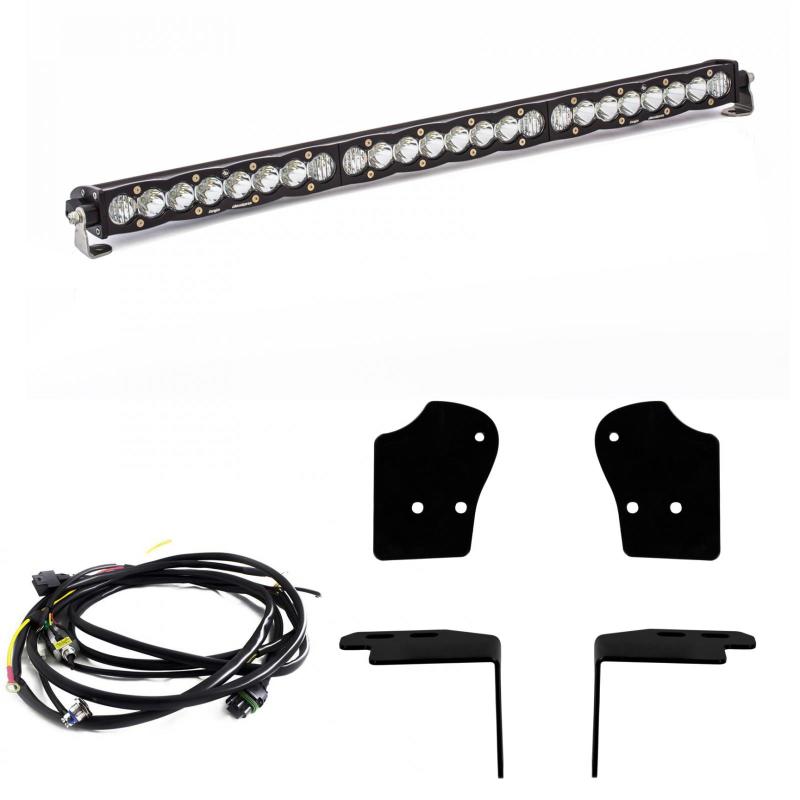

Baja Designs' 2017-2020 Ford Raptor 30 inch S8 grille kit was designed with both functionality and visual appeal in mind. This kit comes with brackets and hardware that were designed to bolt up to factory mounting locations without drilling or cutting. Please note that this kit includes a 30 inch S8 in a driving combo beam pattern and the brackets will not accept any other light. The included harness will allow you to easily tap your lights into the factory up-fitter switches.
Kit will not work with ADD Adaptive Cruise Control relocation kit.
FITS
Ford F-150 Raptor 2017-2020
Dimensions
| Depth (in.) | 3 |
| Height (in.) | 1.6 |
| Length (in.) | 30 |
| Weight (lbs.) | 6.5 |
Specifications
| Amperage Rating (A) | 12.0 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 19,050 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Lighting Quantity | 24 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S8 30 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 180 |
| Wiring Harness Included | No |
Standards & Compliance
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
