LATEST VERSION - NEWEST MODEL
Free Shipping! Typically ships in 5 business days.

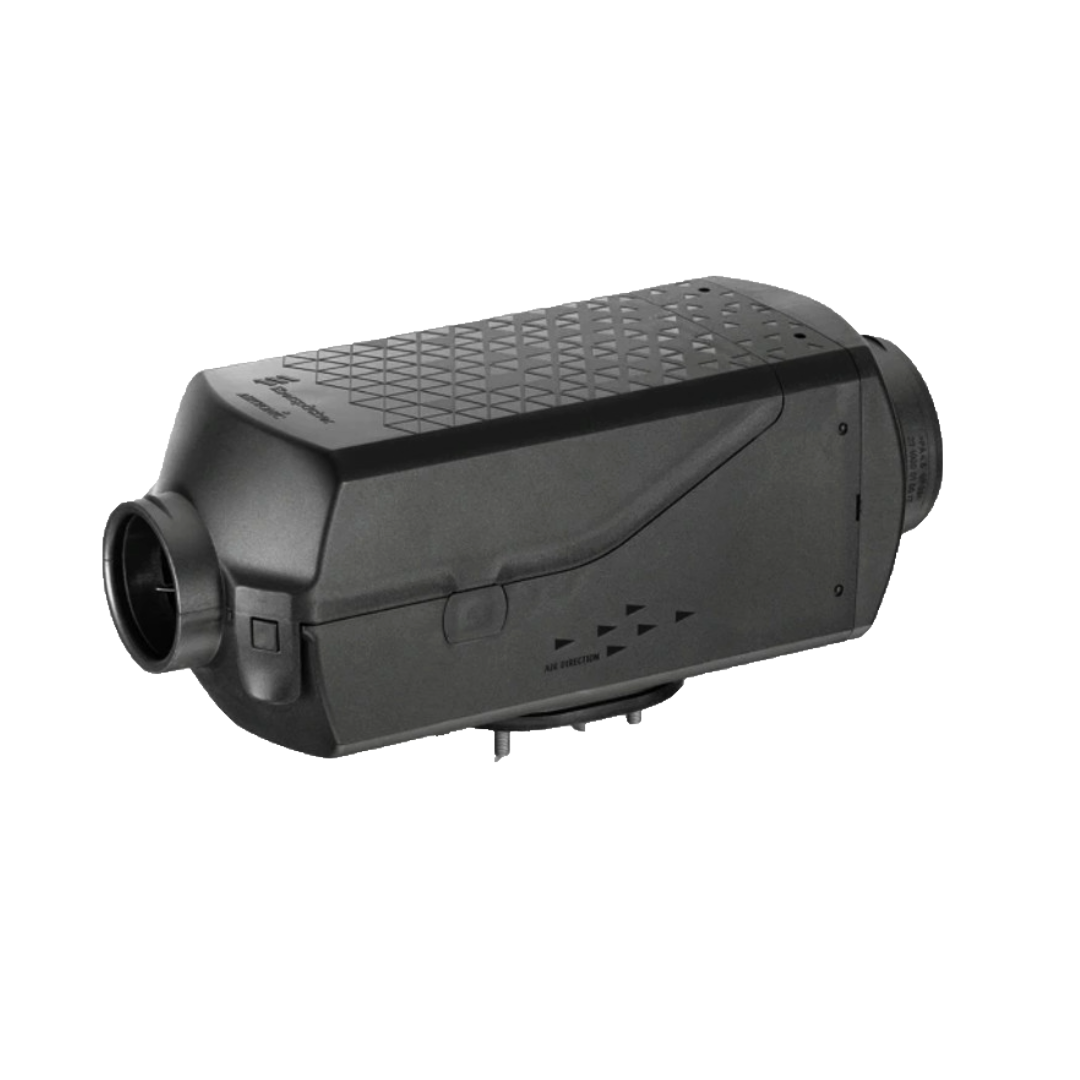

The Espar AS3-D2L diesel heater is the classic way to heat the interior of your van using fuel from your main diesel tank. This kit includes everything you need to install the Espar in your Sprinter van and will operate effectively up to ~ 13,000 ft. in elevation with the included altitude sensor.
Not all Espar kits are built the same. Cheap knock-off versions are known to have issues with the wiring harness and don't always include all of the parts you need. These units are genuine Eberspacher heaters with high-quality wiring harnesses from our US Supplier. They come with a complete one-year warranty and technical support, unlike other versions.
Upgrades From S2-D2L:
- Now works at higher elevations, up to 13,000ft.
- New Flame tube, burns fuel more efficiently.
- Glow Pin screen has been removed, less maintenance.
- New graphics to identify which unit you have.
Product Specs:
- Fuel type: Diesel (Gas units available)
- Voltage: 12 Volts (24v units available)
- Amp Draw: 1-3 amps
- Max Power: 2 kW (4 kW units available)

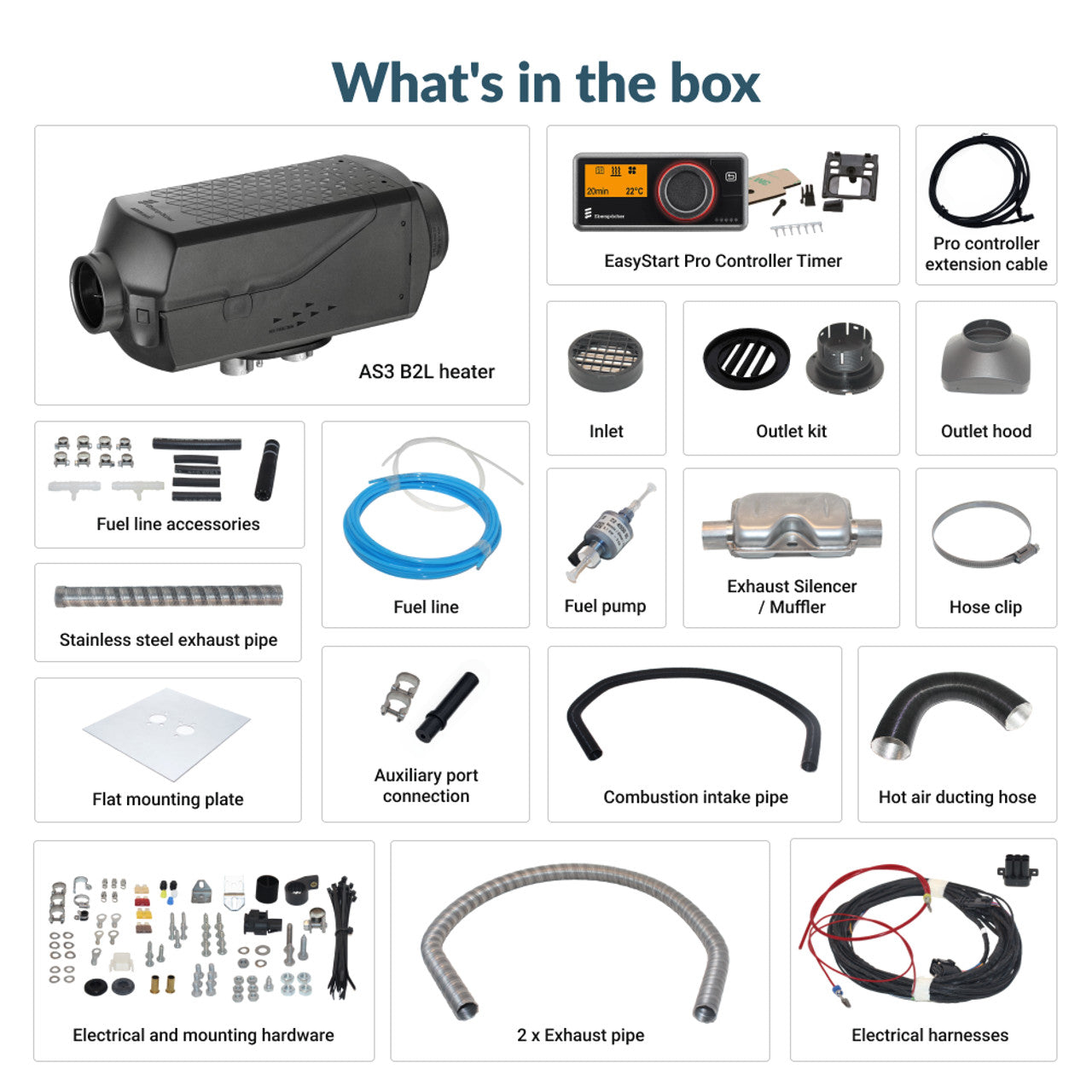

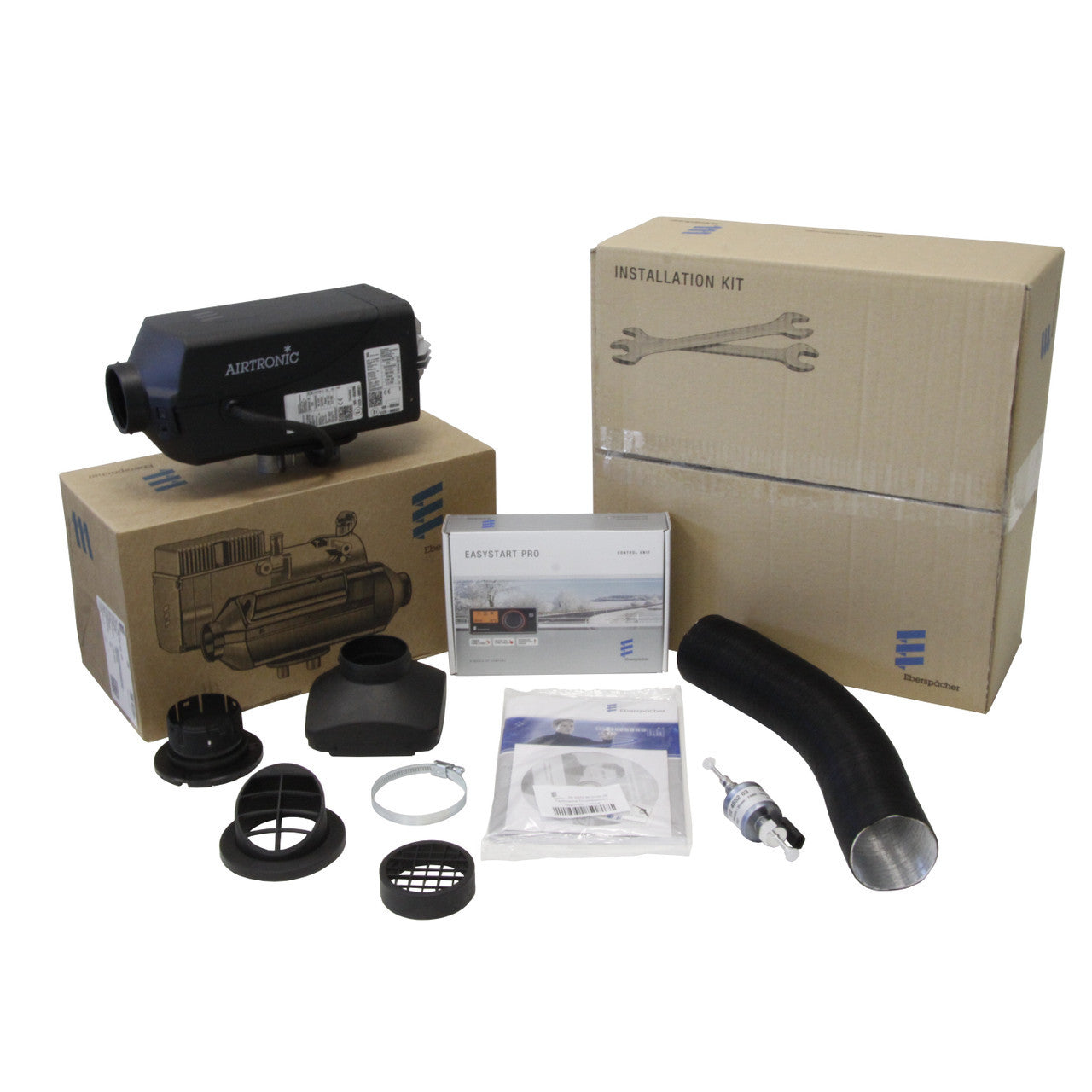

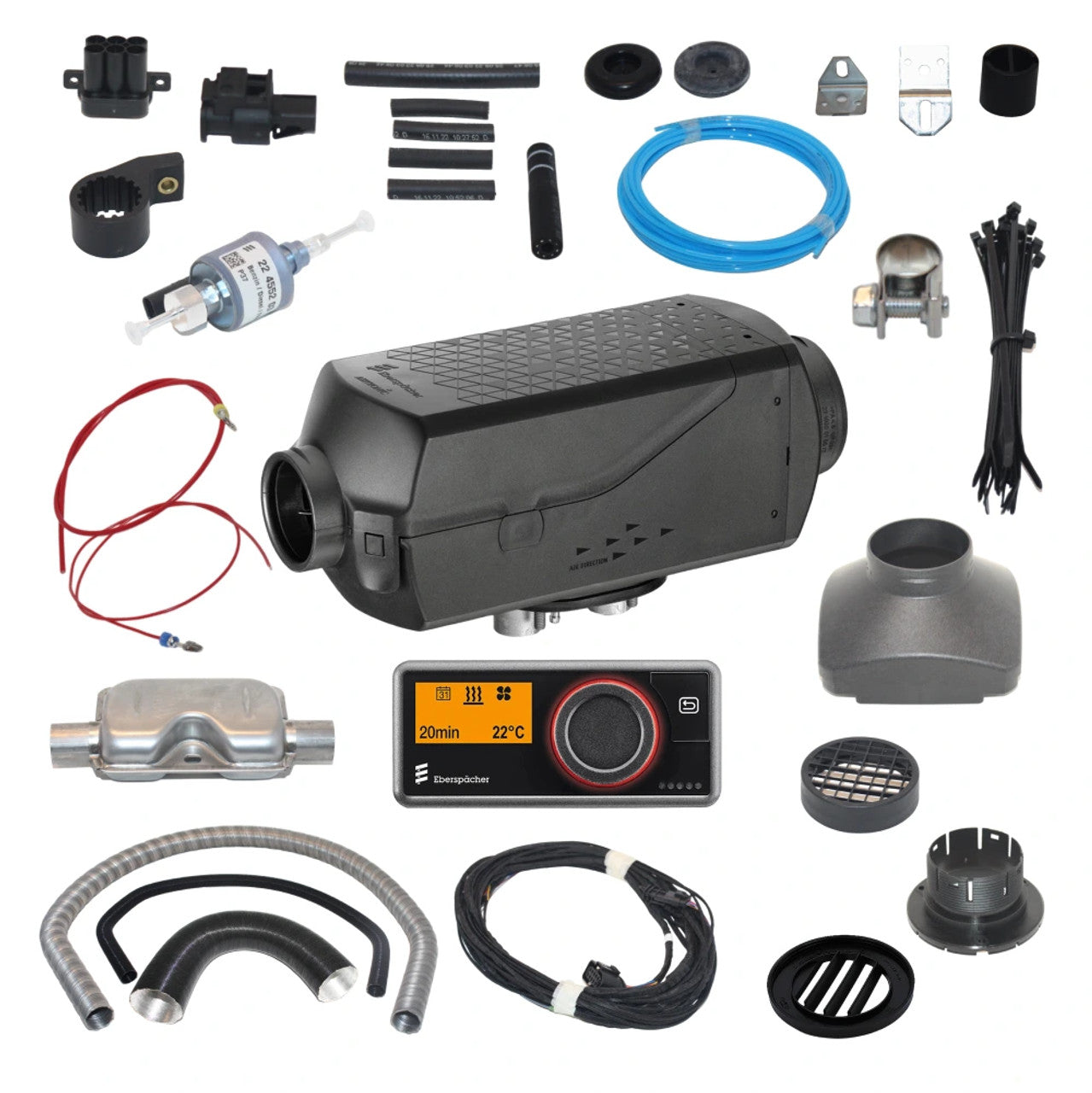

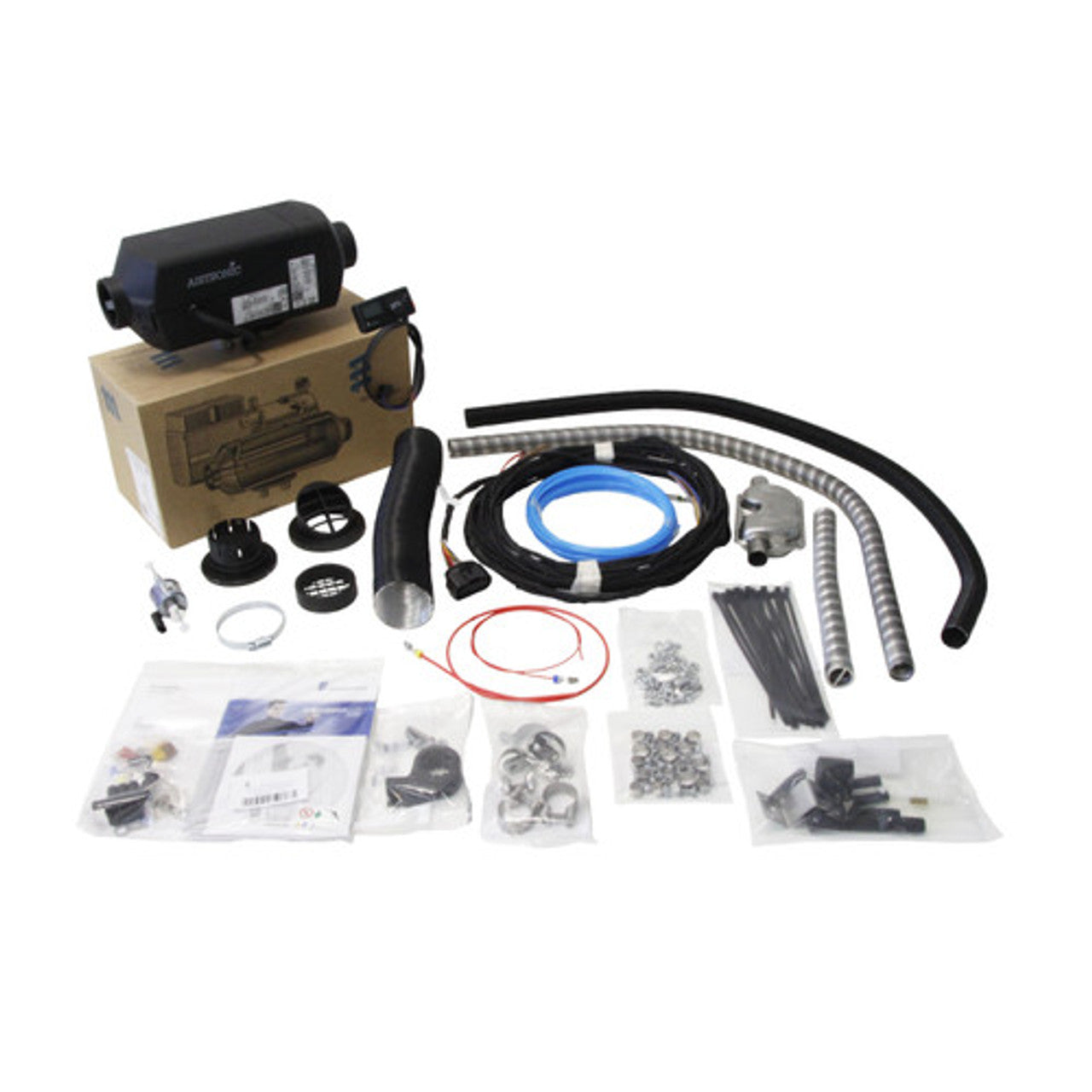

Kit Contents:
- Espar Airtronic AS3 D2L Diesel 12V heater
- Fuel pump (12v)
- Fuel hose
- Fuel T piece kit - Specific Mercedes Benz Sprinter Adapter for aux tap included

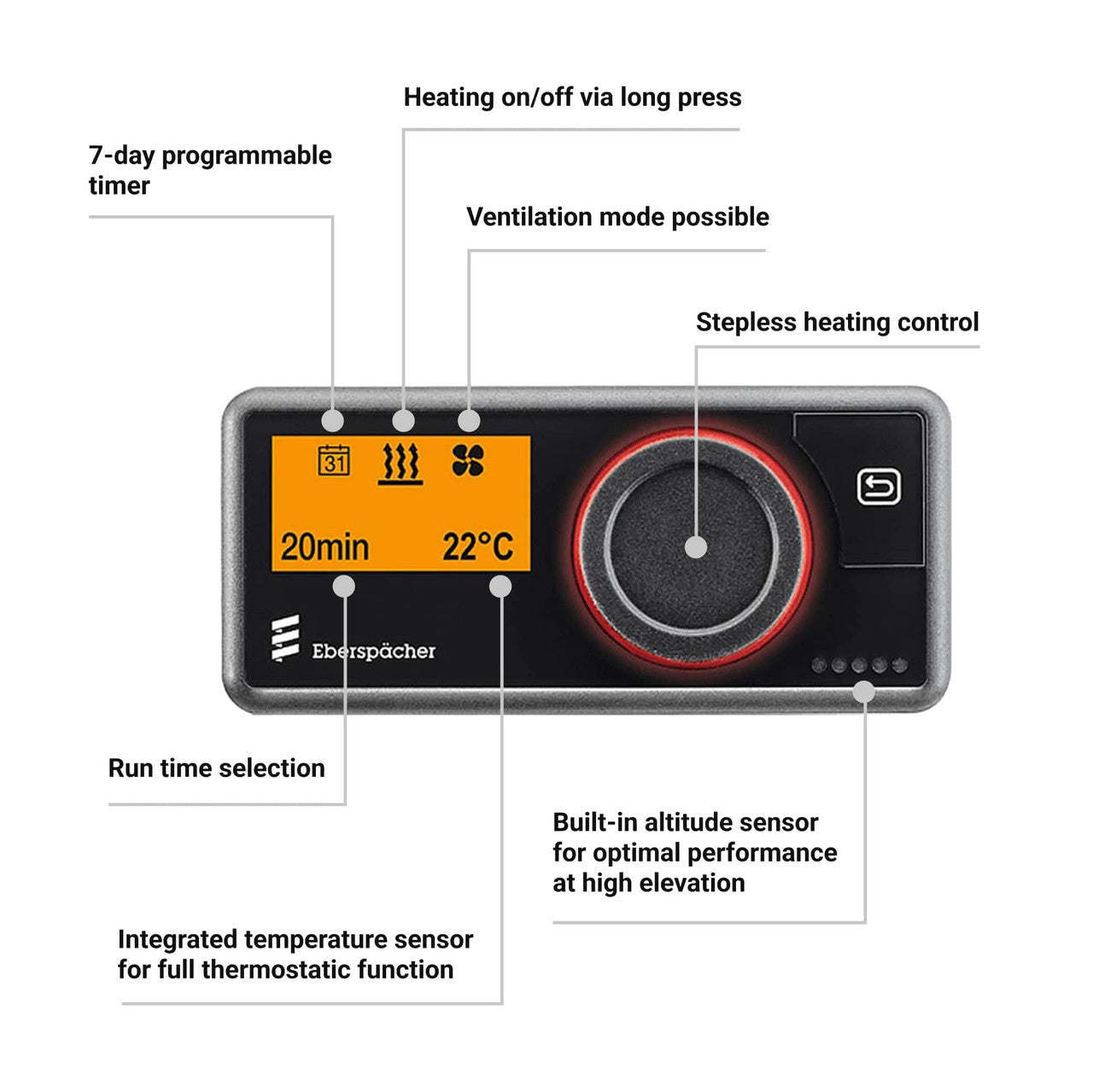

- EasyStart Pro Controller
- Pro controller extension included 9.8 ft/ 3m
- Exhaust Silencer / Muffler
- Electrical harnesses - Plug n' Play
- Stainless steel exhaust system - approx. 6.6 ft / 2m !
- Combustion intake pipe ~3.3ft / 1 meter
- Flexible ducting (60 mm. diameter) - 1.64 ft / 0.5 meter
- Inlet / Outlet grills
- Floor mounting plate included(foam gasket not included)
- Air outlet grill (60 mm. diameter)
- Screws, clips and plastic straps required for installation
- Installation manual CD (Scan QR code for installation manual download)
Specs: Espar AS3-D2L Air Heater- Sprinter Kit Included
|

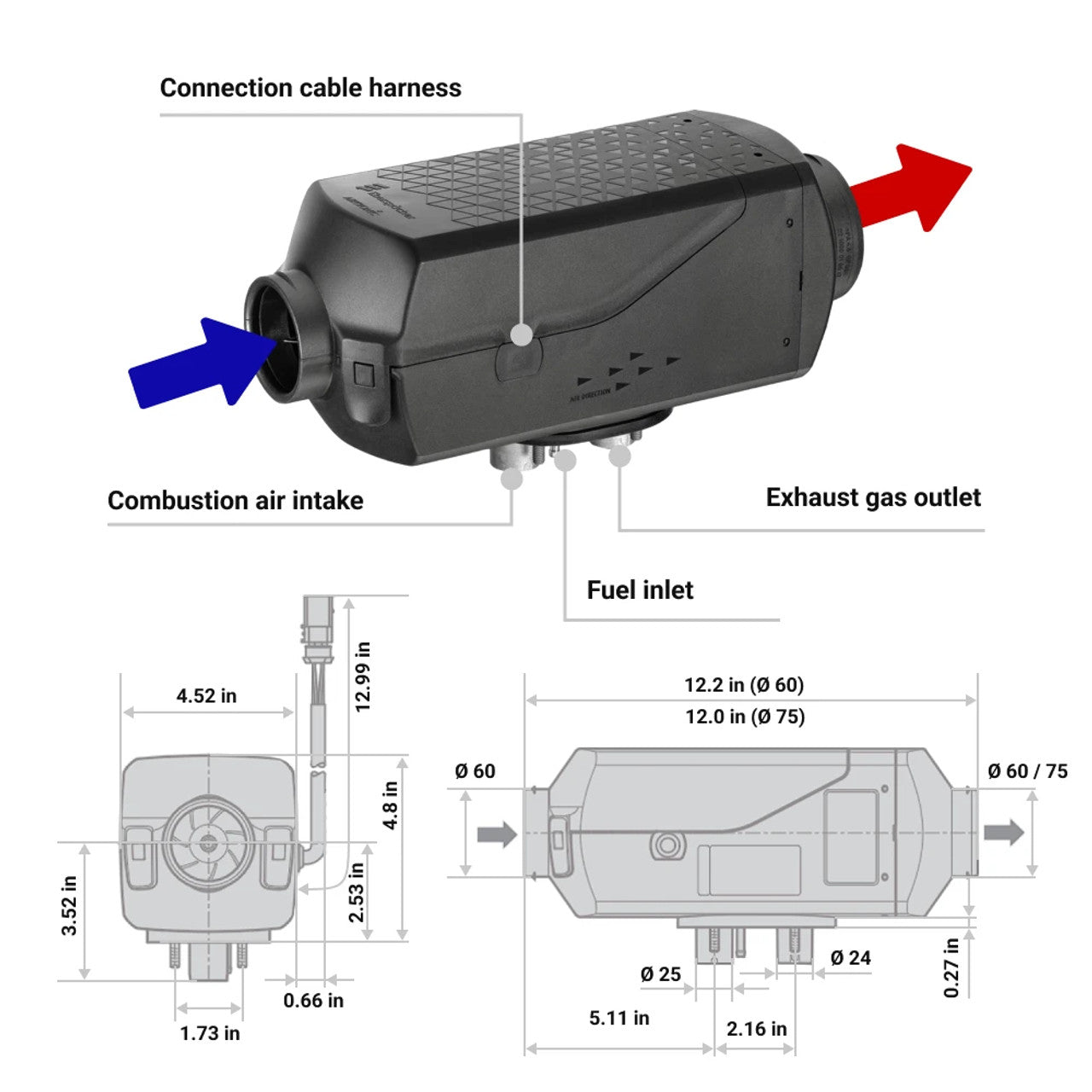

Heater Dimensions (HxWxD) |
121.92mm (4.8 in.)H x 309.88mm (12.2".)L x 114.808mm (4.52 in.)W |
|
Weight |
5.5 lbs (2.5 kg) |
|
Heat Output |
7500 BTU (2.2 kW) |
|
Operating Voltage |
12VDC |
|
Rated Power Consumption |
4-27W |
|
Fuel Consumption |
0.04 - 0.07 gal/h (0.14 - 0.26 l/h) |
|
Fuel Type |
Diesel |
|
Altitude Compensation |
13,120ft (4000m) |
|
Start Up Requirement |
Glow plugs require ~30A at startup for the first minute or two. |
