ICON 07-21 Tundra 1.63-3in Stage 1 3.0 Suspension System

ICON 07-21 Tundra 1.63-3in Stage 1 3.0 Suspension System

$8,148.99 USD
$7,999.60 USD $8,148.99 USD
Sale Sold out
Shipping calculated at checkout.

Available on backorder

Shipping & returns

Shipping is calculated at checkout by size and destination. Most in-stock gear ships within a few business days; large freight items (campers, racks, bumpers) are made to order. Wrong fitment? Send it back within 30 days — we'll help you find the part that does fit.

Fitment & build help

Not sure if this fits your platform? Tell us your year, make, model, and trim — we'll confirm before you order. For bigger builds, we'll help you plan the full stack.

Warranty

Every product on this site ships through authorized channels with full manufacturer warranty. If something breaks in normal use, we'll help you get it resolved.

View full details

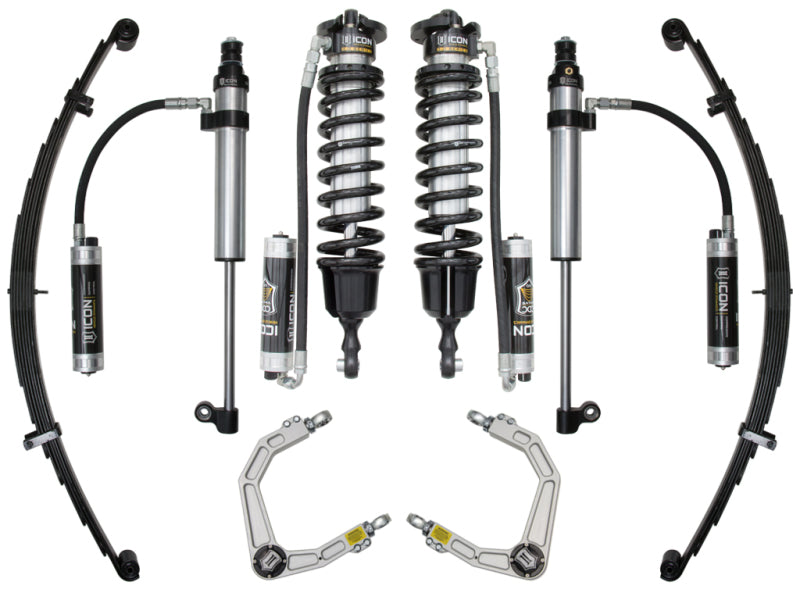

The Stage 1 3.0 system includes vehicle-specific tuned 3.0 Series coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered oil springs for superior vehicle “feel” through the range of travel, and are height adjustable from 1.63-3” allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these coilovers increase droop travel to the front suspension.

This Part Fits:

Year Make Model Submodel
2014-2021 Toyota Tundra 1794 Edition
2007-2013 Toyota Tundra Base
2007-2021 Toyota Tundra Limited
2021 Toyota Tundra Nightshade
2010-2021 Toyota Tundra Platinum
2014-2021 Toyota Tundra SR
2007-2011,2014-2021 Toyota Tundra SR5
2021 Toyota Tundra Trail
2015-2017,2019-2021 Toyota Tundra TRD Pro
