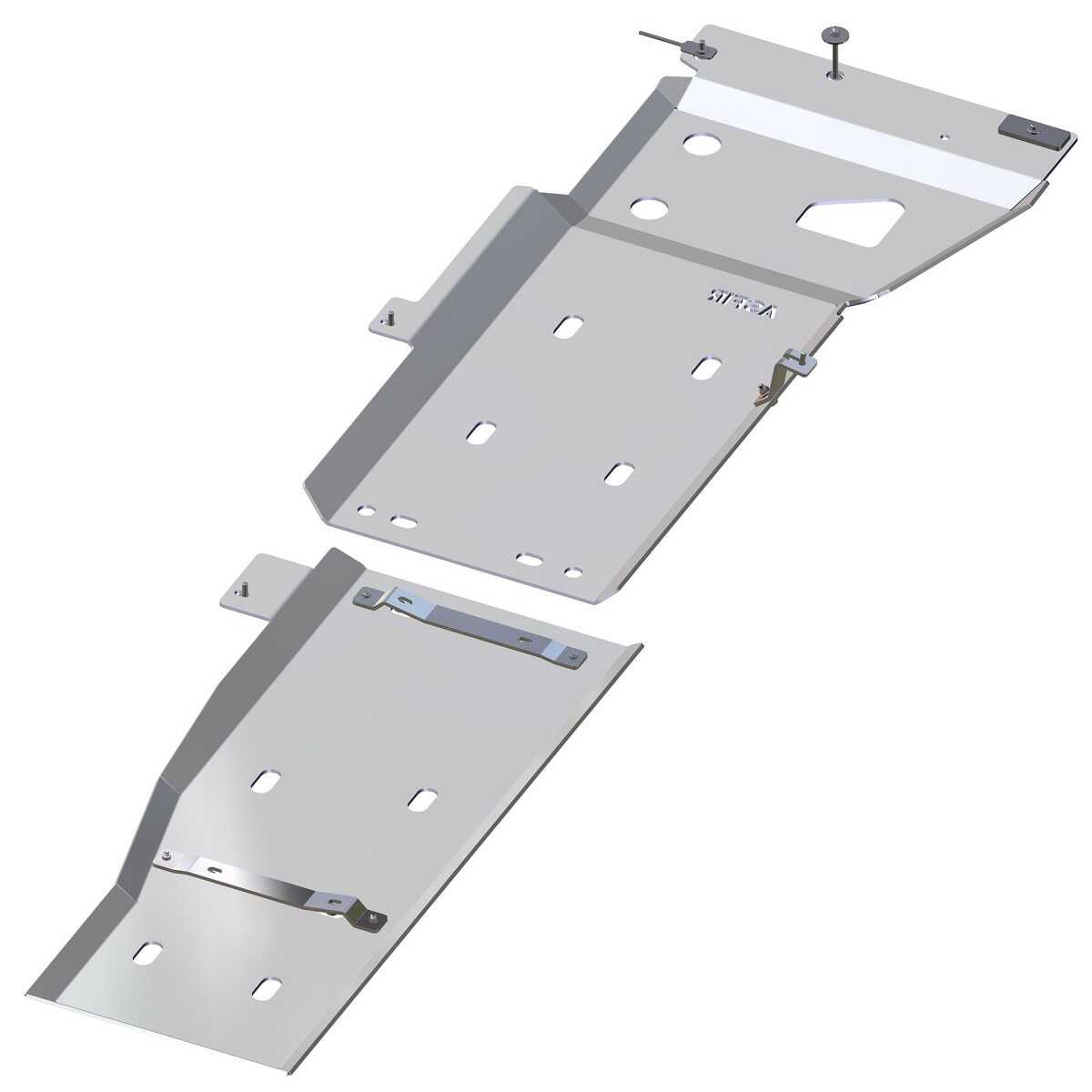

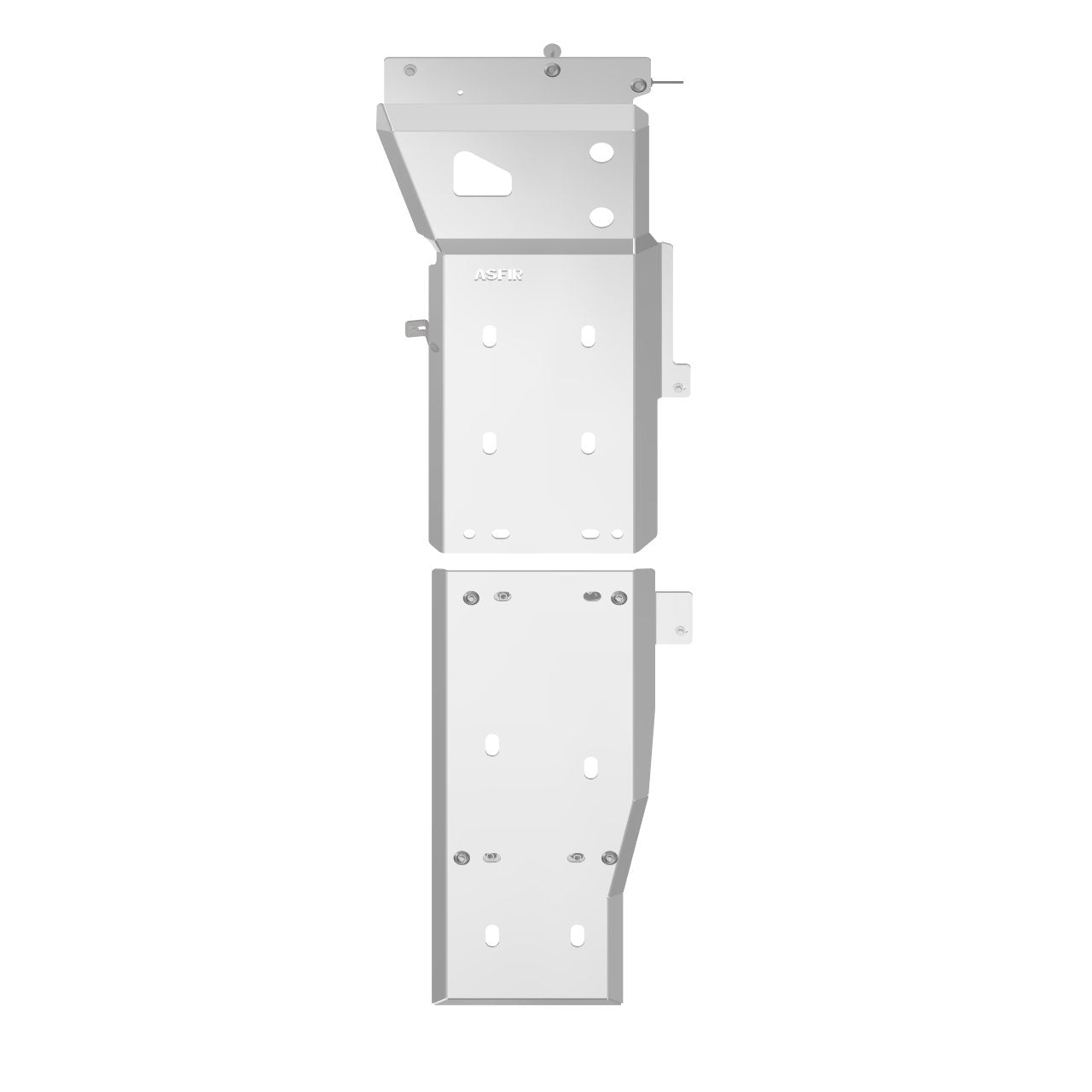

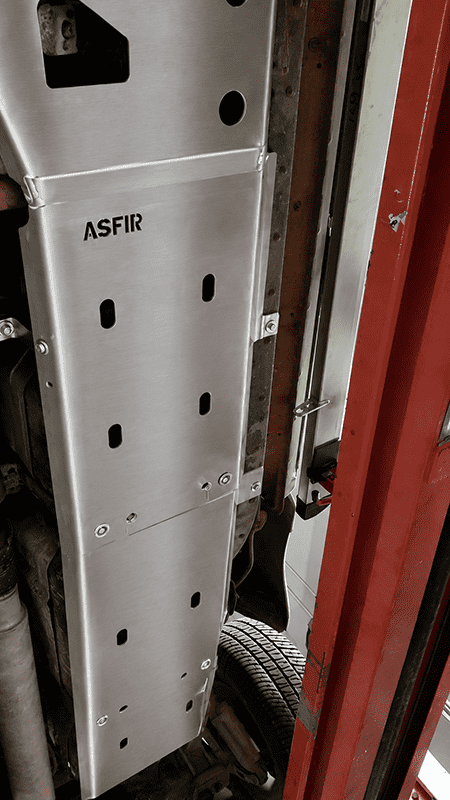

ASFIR 4x4 USA Toyota Tundra Fuel tank and Transfer Case Skid Plates provide targeted underbody protection for owners of 2007-2021 Toyota Tundra trucks with a 5.7L petrol automatic drivetrain. Built from laser-cut 1/4 inch (6 mm) aluminum, this bolt-on set protects the fuel tank and transfer case while minimizing clearance loss.
Key Features & Specs
- Vehicle fitment: Toyota Tundra 2007-2021 with a 5.7L petrol engine and automatic transmission.
- Tested fuel-tank configuration: 26.4-gallon (100 L) fuel tank.
- Material: Precision laser-cut 1/4 inch (6 mm) aluminum.
- Protection coverage: Shields the fuel tank and transfer case.
- Structural reinforcement: Stiffening ribs support the plate construction.
- Debris and heat management: Ventilation slots and drain holes help prevent heat and debris buildup.
- Mounting hardware: Zinc-coated steel brackets and a complete hardware kit are included.
- Installation: 100% bolt-on mounting with no drilling or cutting required.
- Total weight: 51 lb (23 kg).
- Country of manufacture: Made in Israel.
How it Compares
| Feature | This Product | Why It Matters |
|---|---|---|
| Material and Thickness | 1/4 inch (6 mm) laser-cut aluminum | Offers high strength while minimizing vehicle weight, contributing to both protection and fuel efficiency. |
| Fit Compatibility | Designed for Toyota Tundra 2007-2021 (5.7L petrol automatic, 26.4-gal tank) | Ensures precise fitment and reliable coverage for vehicles matching these specifications. |
| Installation | 100% bolt-on, no drilling or cutting required; hardware included | Simplifies installation for the end user and avoids modifications to the vehicle. |
| Protective Coverage | Shields both fuel tank and transfer case | Provides comprehensive underbody protection for critical vehicle components. |
| Weight | 51 lb (23 kg) | Maintains vehicle performance by adding minimal weight compared to steel alternatives. |
Recommended Use Cases
- Driving a compatible Toyota Tundra on rocky, uneven, or rough off-road trails where exposed underbody components may contact terrain.
- Adding protection for the fuel tank and transfer case before trail travel, overland-style routes, or other off-pavement use.
- Choosing an aluminum protection solution when minimizing added weight and clearance loss are priorities.
- Installing as part of ASFIR 4x4 USA complete underbody protection kit for the Toyota Tundra.
- Equipping a 2007-2021 Toyota Tundra with 5.7L petrol automatic drivetrain for routes where debris can collect beneath the vehicle.
Frequently Asked Questions
Which skid plates are a good choice for protecting a Toyota Tundra fuel tank and transfer case during off-roading?
The Toyota Tundra Fuel Tank and Transfer Case Skid Plates protect both components with 1/4-inch (6 mm) laser-cut aluminum panels. They are vehicle-specific for 2007-2021 Toyota Tundra models with a 5.7L petrol automatic drivetrain and 26.4-gallon (100 L) fuel tank.
Are these a good option for lightweight but strong underbody protection on a pickup truck?
These skid plates use 1/4-inch (6 mm) aluminum to provide underbody protection while limiting added weight to 51 lb (23 kg) for the complete set. Stiffening ribs reinforce the panels, and the design is intended to minimize clearance loss.
What should I look for in skid plates for rocky or uneven trails?
Look for protection that covers vulnerable underbody components, uses a suitably robust material, and preserves practical ground clearance. The Toyota Tundra Fuel Tank and Transfer Case Skid Plates cover the fuel tank and transfer case, include reinforcing ribs, and are designed to minimize clearance loss.
How do these skid plates handle trail debris and heat around the underbody?
Ventilation slots and drain holes help prevent heat and debris buildup around the protected areas. The panels are mounted with zinc-coated steel brackets.
Is installation practical for a Tundra owner upgrading underbody protection?
Installation is 100% bolt-on and does not require drilling or cutting. A complete hardware kit is included.
