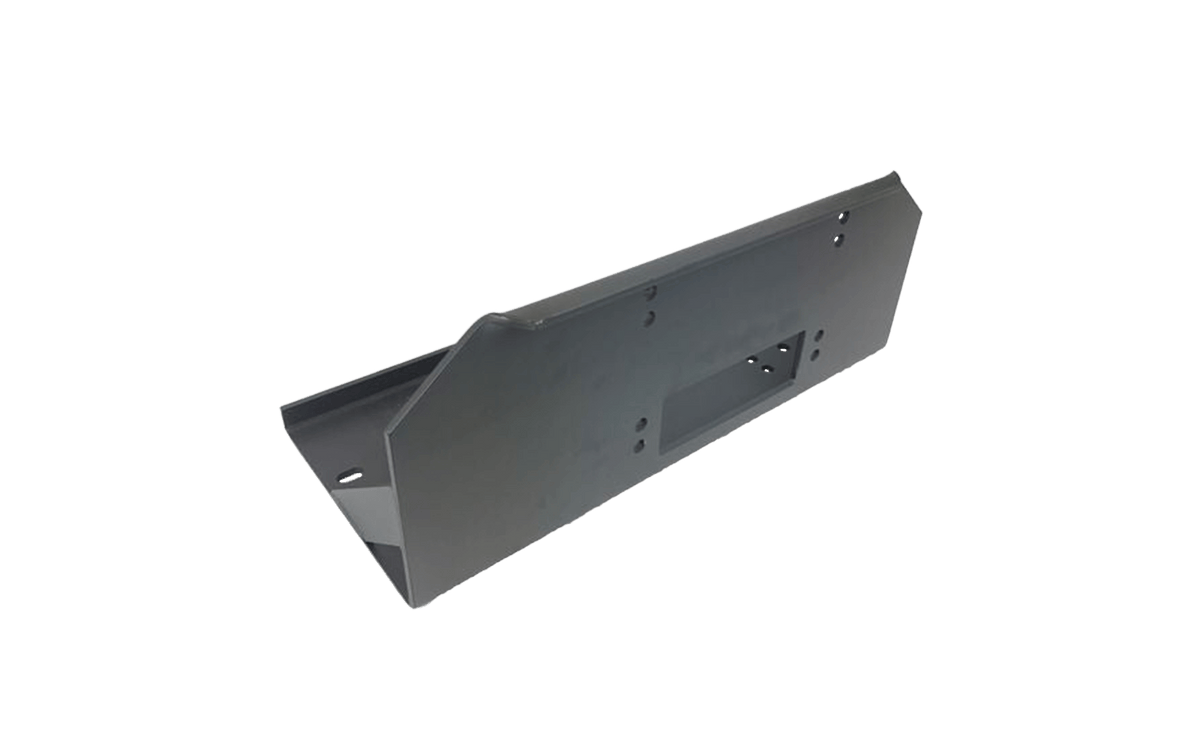

Winch Mounting Plate - Up to 22,000 lbs Winch

Winch Mounting Plate - Up to 22,000 lbs Winch

$179.99 USD
$179.99 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Shipping & returns

Shipping is calculated at checkout by size and destination. Most in-stock gear ships within a few business days; large freight items (campers, racks, bumpers) are made to order. Wrong fitment? Send it back within 30 days — we'll help you find the part that does fit.

Fitment & build help

Not sure if this fits your platform? Tell us your year, make, model, and trim — we'll confirm before you order. For bigger builds, we'll help you plan the full stack.

Warranty

Every product on this site ships through authorized channels with full manufacturer warranty. If something breaks in normal use, we'll help you get it resolved.

View full details

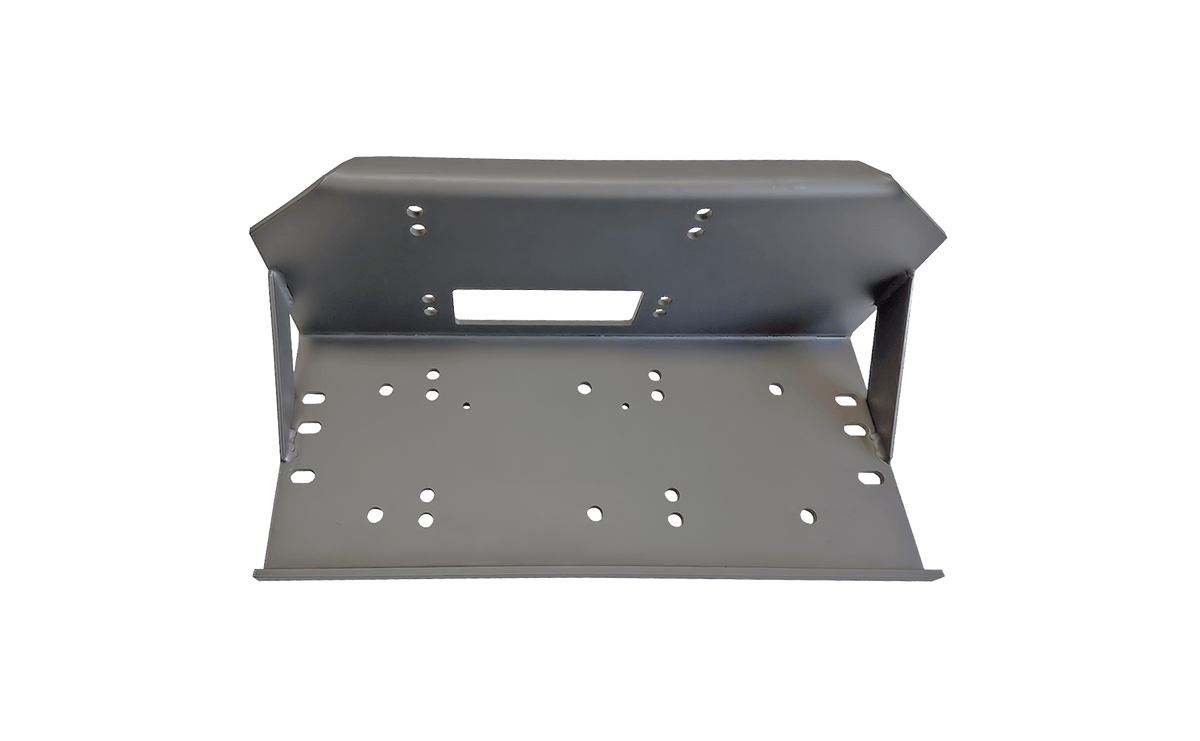

This heavy duty winch mounting plate is perfect for use with winches of up to 22,000lb pulling power. Finished in a durable black powdercoat, it is predrilled for most standard winches and can be modified to suit your own requirements when installing.

Originally designed to suit Warrior Samurai 17500 winches fitted in a Foot Down or Foot Forward configuration.

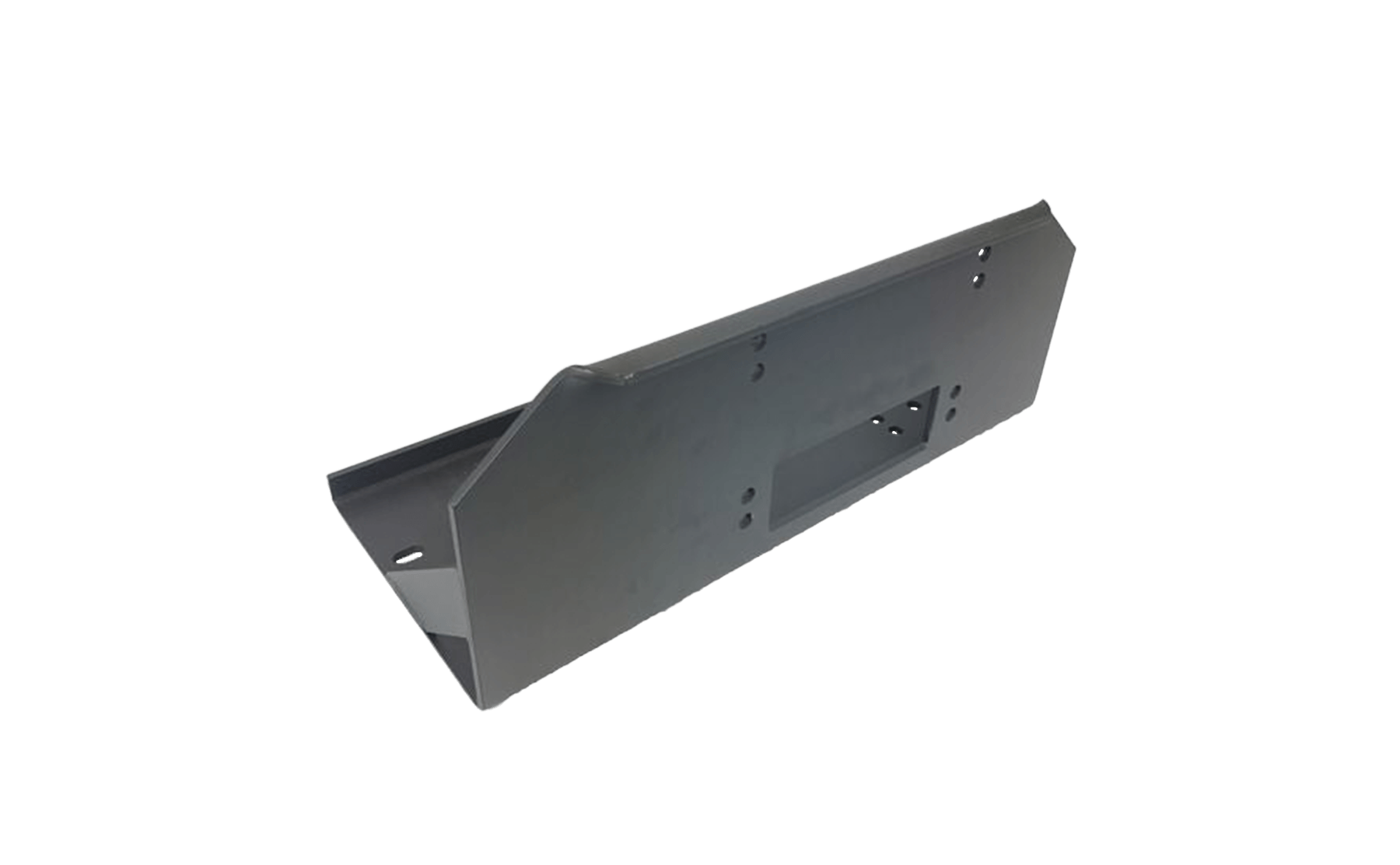

There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead too along with holes for front mounted winches.

Dimensions:

Front mounting pattern - 254mm x 114.3mm & 254mm x 165.1mm
Bottom mounting pattern - 254mm x 114.3mm & 254mm x 165.1mm
Overall = 640mm x 285mm x 260mm
Material Thickness = 7mm
Fairlead hole Centres = 255mm

This plate is designed for use with:

  • Samurai Winches: 17500lb
  • T1000 Winches: 18000lb
  • T120S12-CAD
