This is the XTR1 Bed Rack for Retrax XR Covers — purpose-built to mount directly to the Retrax XR tonneau cover's integrated T-slot rails (cover sold separately — this listing is the rack). If you run a Retrax XR cover and thought a bed rack meant giving up your tonneau, the XTR1 Retrax XR Build mounts directly to the cover’s own T-slot rails, so you keep your weather-sealed, locking bed and gain a full overland & utility rack on top — no drilling, no compromise.
What it does

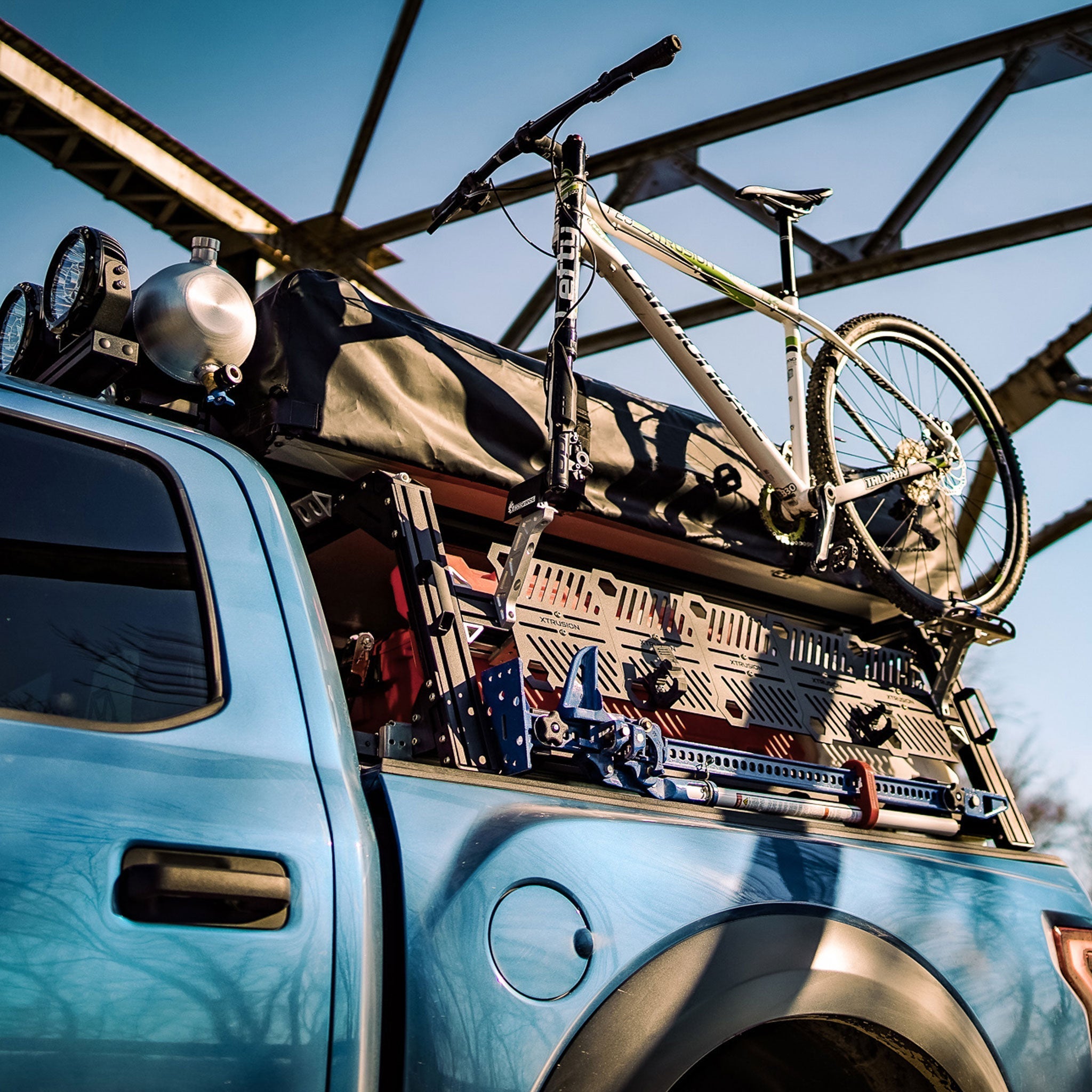

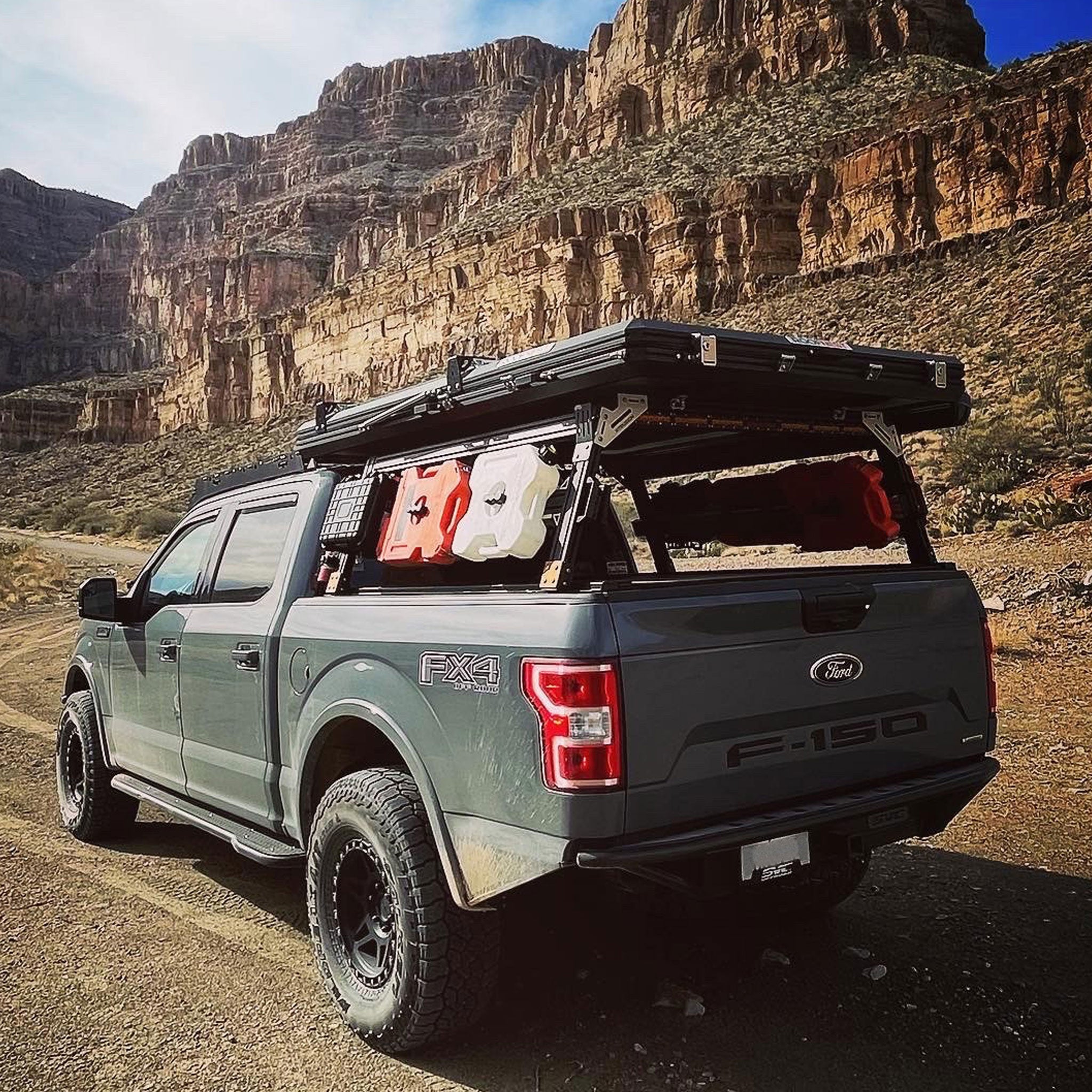

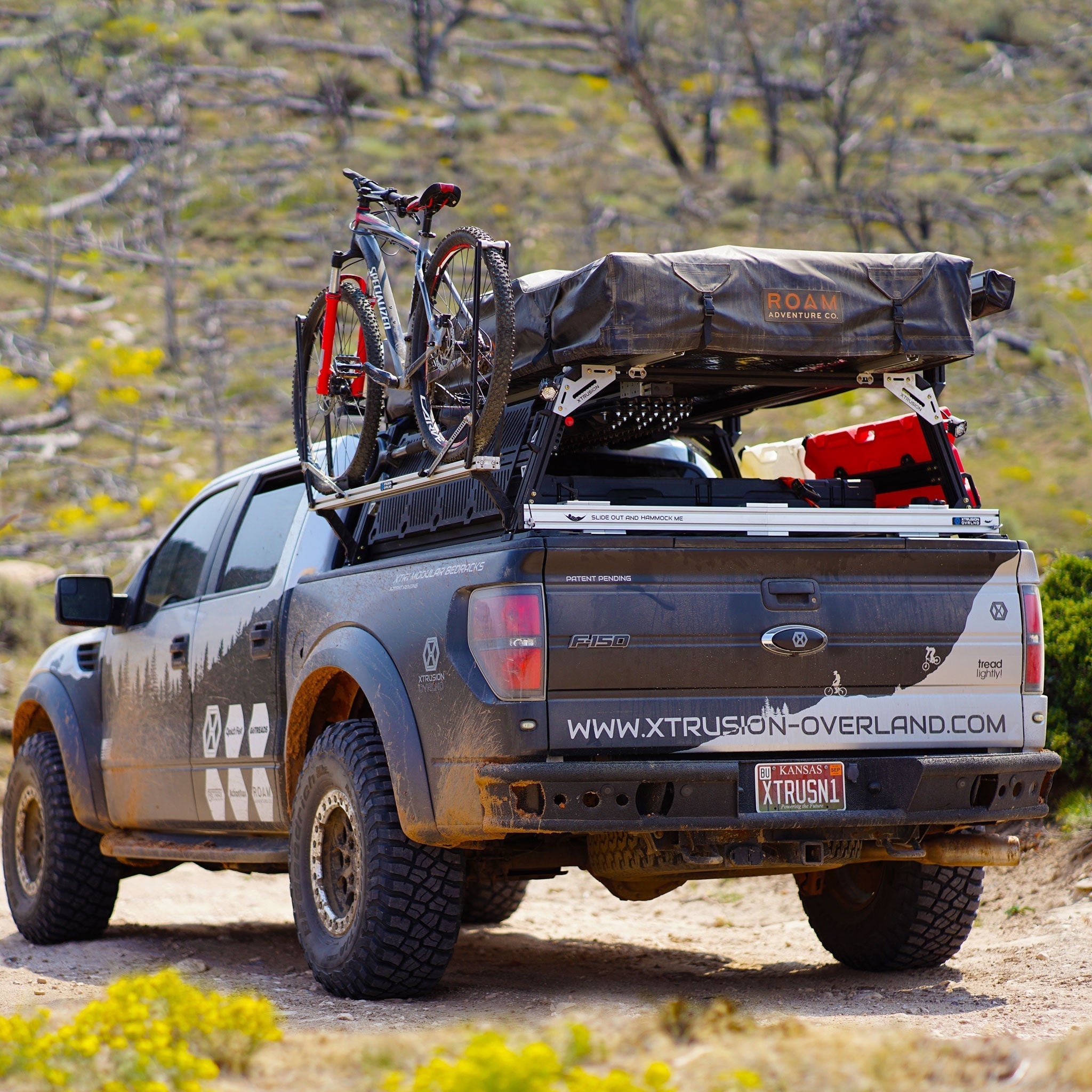

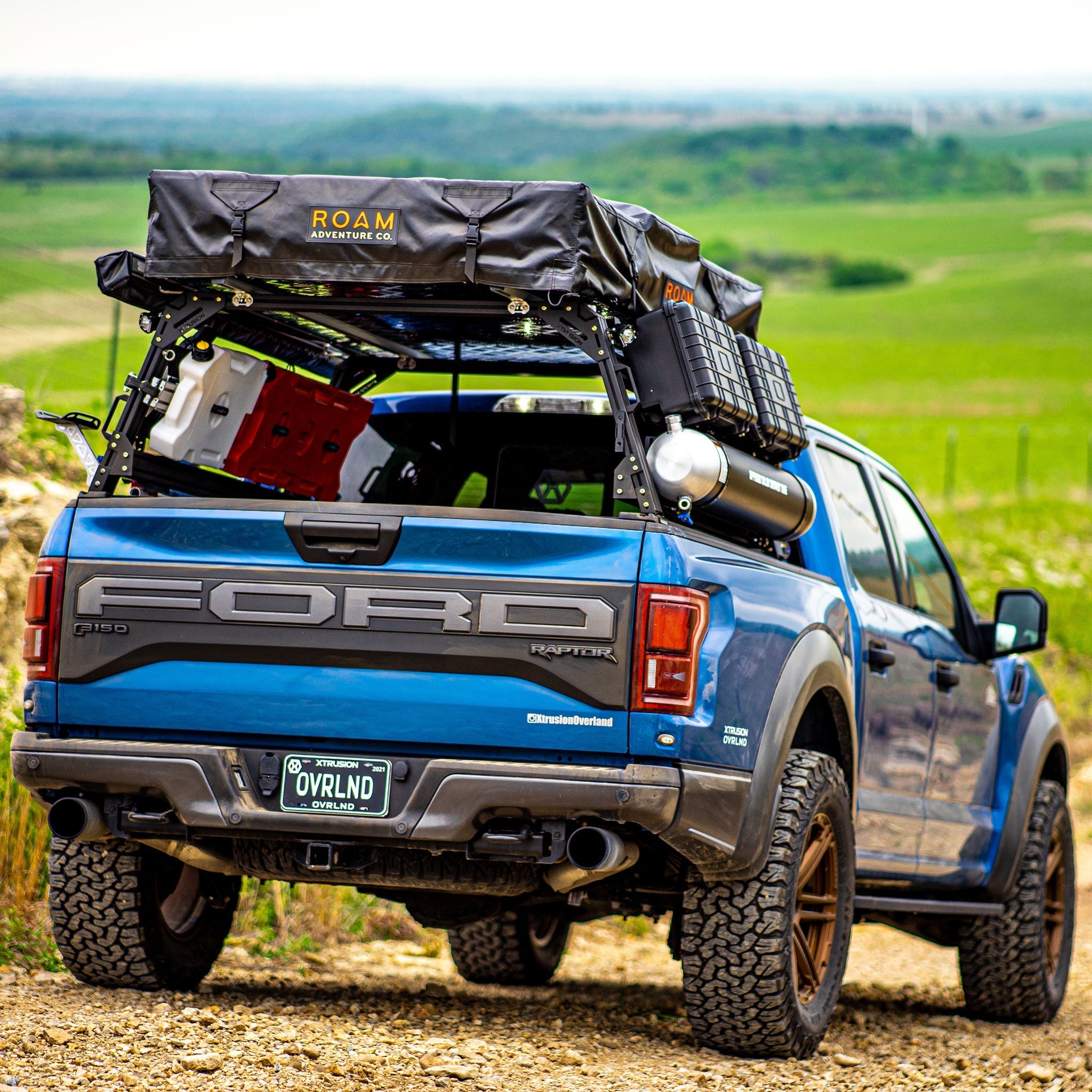

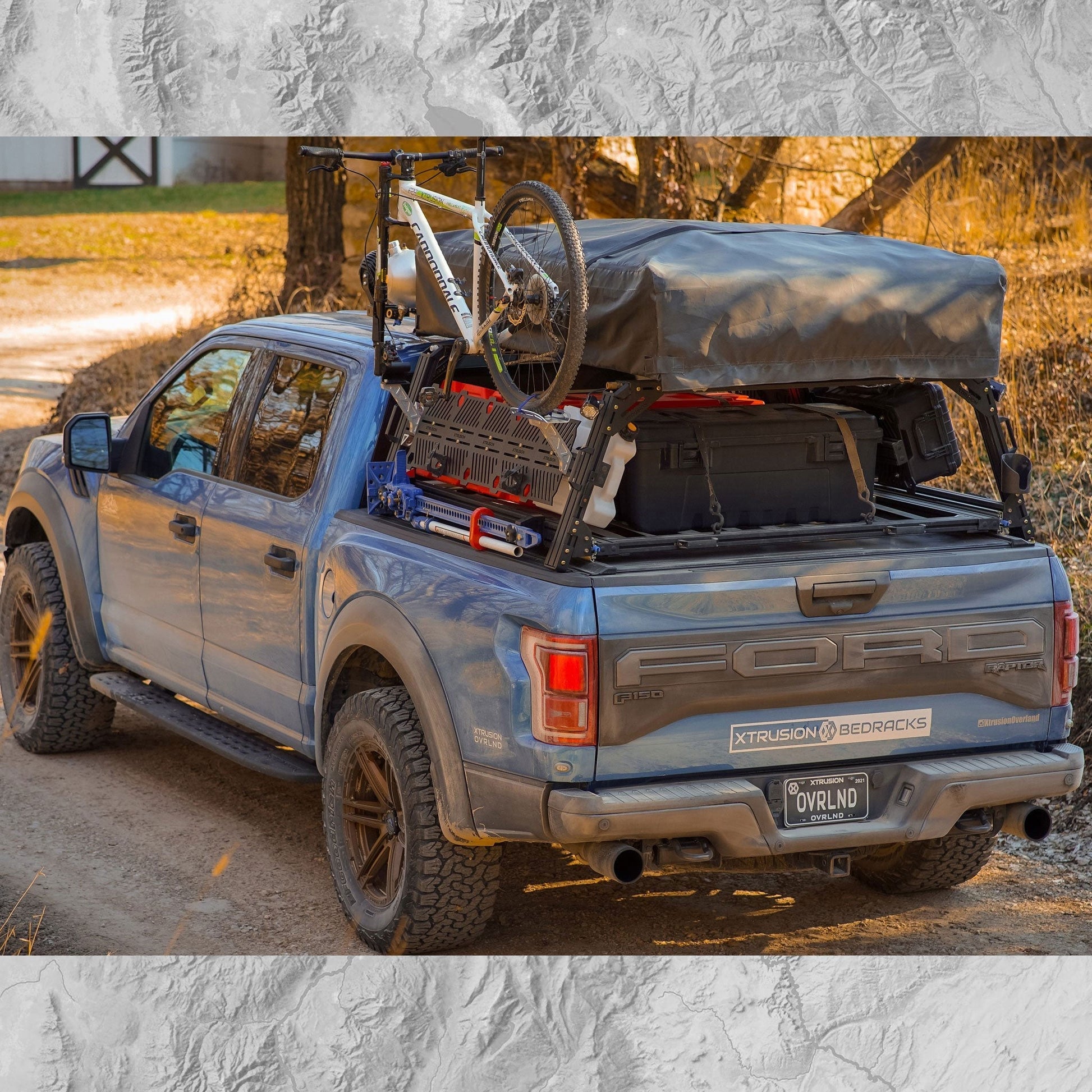

The XTR1 Bed Rack for Retrax XR Covers mounts securely to your cover’s T-slot rails, turning your F-150 bed into a fully modular cargo platform. Carry a rooftop tent, awning, recovery gear, fuel, and water on top, while keeping the bed underneath locked and weather-sealed. Works as a F-150 ladder rack, a cargo rack for lumber and conduit, or a no-nonsense overland basecamp — built from solid T-slot aluminum, not flimsy sheet metal.
Built for the Retrax XR Cover
This is not a universal bracket forced to fit. The XTR1 Retrax XR Build ships pre-configured for the Retrax XR’s integrated T-slot rail system — the bedrail brackets connect your uprights straight to the cover, so the rack and the tonneau work as one. Already running a Retrax XR on your F-150? This is your exact-fit rack.
Why XTR1 is different
The XTR1 is our original four-upright bed rack and the foundation that established the Xtrusion Overland rack system. Its open design provides excellent side access, outstanding accessory compatibility, and a clean layout that’s equally at home on work trucks, overland builds, and daily drivers. It comes with 4 uprights (one in each corner), 2 side braces, 2 top crossbars, and 2 top support braces. Fewer moving parts, lighter weight, and a clean, traditional look that ages well under trail dust and jobsite grime.
- Solid extruded aluminum — the strongest, lightest, most modular material on the market, with no rust and no sacrifice in features.
- T-slot on every linear surface — near-infinite mounting points; mount anything in any position and reconfigure in minutes.
- 4 uprights (one in each corner) — classic, proven load distribution for tents, awnings, recovery gear, and commercial gear.
- Tonneau-friendly by design — built around your Retrax XR cover, not in spite of it.
Choose XTR1 if you...
Want more than just a rack. It is the starting point for a modular truck system. Start with the bed rack, then add accessories as your needs change. Depending on your setup, the XTR1 can work with MOLLE panels, AXS Gates, slide-out storage, recovery gear mounts, lighting, water storage, and other rack-mounted accessories.
Because the rack is built around T-slot extrusion, you can continue adapting the layout instead of replacing the entire system as your build grows.
What’s included
- 2 Top Crossbars
- 4 Uprights (Columns)
- 2 Top Support Braces (1530 Black)
- 2 Side Braces (1530 Black)
- 6 Bedrail Brackets (connect uprights to your Retrax XR cover)
- 4 Top Corner Brackets (connect crossbars and uprights)
- All screws and hardware required for assembly
- Set of Black XTR Off-Road Reinforcement Plates ($110 value)
- Metal Handle Kit — Set of 4 ($40 value)
- 16 pcs Drop-In T-Nuts — 5/16-8 ($12 value)
- 16 pcs Button Head Screws — 5/16-8 x 5/8" ($8.80 value)
Accessory Stages — outfit your bed rack now and save big
- Stage 1: Bed Rack only
- Stage 2: Bed Rack + 8 MOLLE Plates (12x9 plates for mid-height racks & 16x11 plates for cab-height racks)
Specifications
Rated capacity (evenly distributed): 450 lb dynamic off-road, 850 lb dynamic on-road, 1,550 lb static — or OEM bed rail capacity, whichever is less.
Looking for something a little different?
We build XTR1 and XTR3 racks for every F-150 setup — pick the one for your bed:
- XTR1 Custom Height Bed Rack: F-150 XTR1 Custom Height Bed Rack
- XTR1 Pre-configured Bed Rack (Mid-Cab Height): F-150 XTR1 Pre-configured Bed Rack
- XTR1 Bed Rack for Softopper, FasTop & Bestop Soft Toppers: F-150 XTR1 Soft Topper Bed Rack
- XTR3 Bed Rack for Retrax XR Tonneau Covers: F-150 XTR3 Retrax XR Build
- XTR3 Bed Rack for Softopper, FasTop & Bestop Soft Toppers: F-150 XTR3 Soft Topper Bed Rack
- Roll-n-Lock XT, Pace Edwards UltraGroove, or another built-in T-slot cover? Email support@xtrusiondesigns.com and our team will configure the right fit.
Explore more F-150 gear
- See every F-150 rack option on our F-150 Bed Racks collection.
- Need a cover too? Browse our F-150 Bed Covers & Soft Tops collection.
Frequently Asked Questions
Will this rack work with a Softopper, FasTop, or Bestop on my F-150?
No. This rack is designed to mount to your Retrax XR tonneau cover’s T-slot rails. If you run a canvas-style soft topper, look at our XTR1 Soft Topper Bed Rack or XTR3 Soft Topper Bed Rack instead, both of which are built at a 13.3° angle to match your topper’s sidewalls.
Does this require drilling into my F-150?
No. The rack mounts directly to the Retrax XR cover’s T-slot rails using the included bedrail brackets. No permanent modifications to your truck or cover, and no compromising your factory finish.
